Battery Holder – #R31S035 R31 House – Battery Holder – #R31S035
This is the separate battery holder set from Shibata.
This part works with the following car models:
– GRK5 (genuine parts)
– GRK4
– GRK3
– GRK Global Series including GRK-M (*)
(*) Compatible with our company’s carbon main chassis (cannot be installed on the resin main chassis because the mounting method is different.)
Commodity explanation

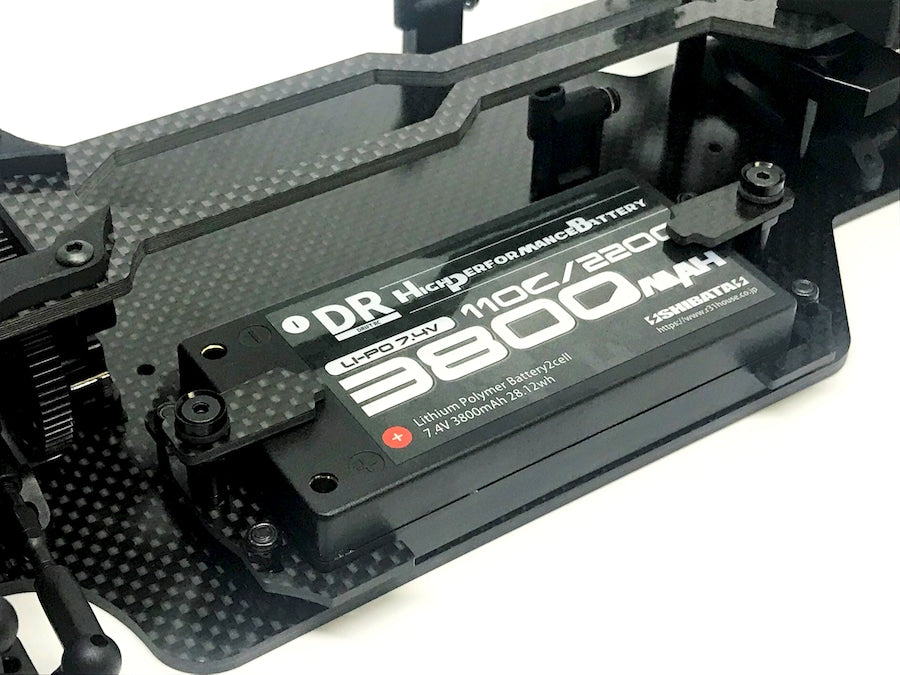

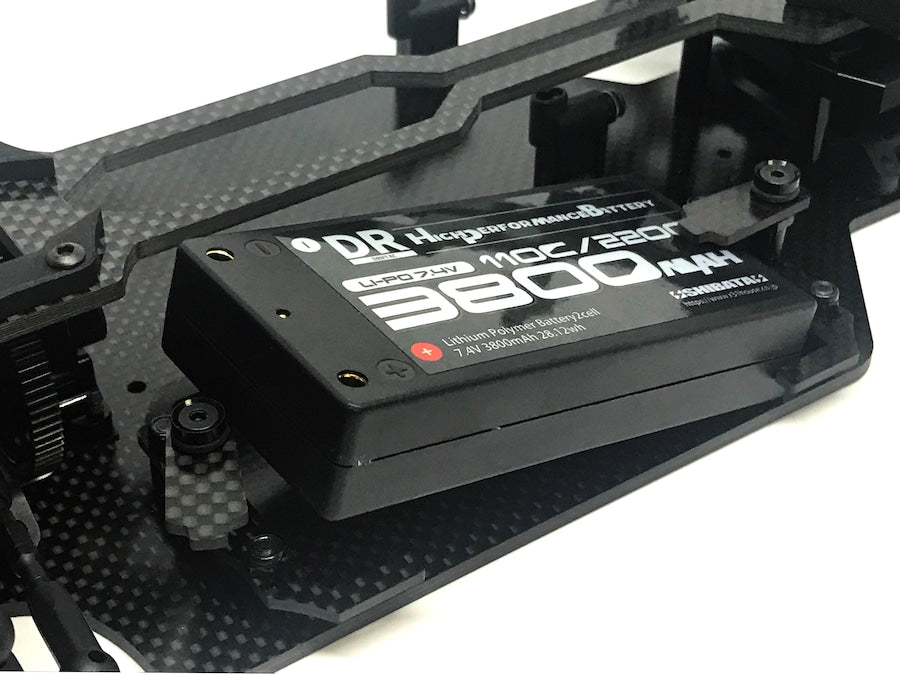

A separate battery holder that can be attached and detached with one touch brings out the original performance of the chassis without interfering with the bending of the main chassis.
It is a set product that comes with a set of screws, spacers, O-rings, etc. necessary for mounting on the chassis body (**)
**[DR-B3800] Compatible with SHIBATA DR high performance battery.
If you use a battery made by another vehicle, please adjust it with a spacer etc. according to the actual size.

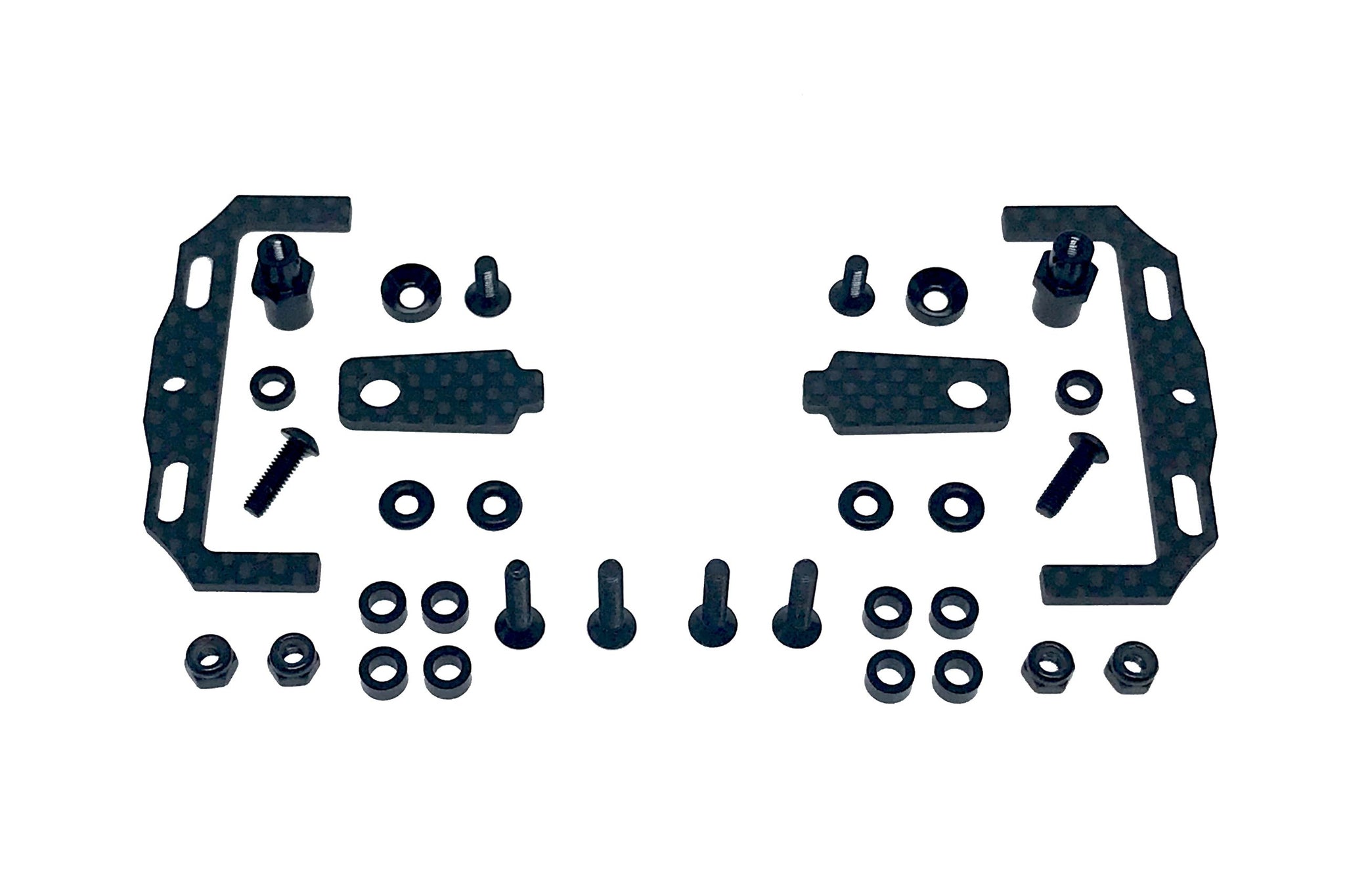

Contents
2x Separate battery holder (lower side)
2x Separate battery holder plate (upper)
2x Aluminum battery post R31G019
4x O-ring R31G043
8x Aluminum spacer 3.0x3mm thick R31M077BK
2x Aluminum spacer 3.0x2mm thick R31M076BK
2x Aluminum 3mm countersunk washer S R31B072BK
4x M3 nylon nut R31M116
4x Countersunk screw M3x15mm R31M115
2x Countersunk screw M3x8mm R31M112
2x Button screw M3 x 10mm R31M109
