Sky rc lipo charger T100 SK-100162

Multi-purpose for Most Chemistries With Generic XT60

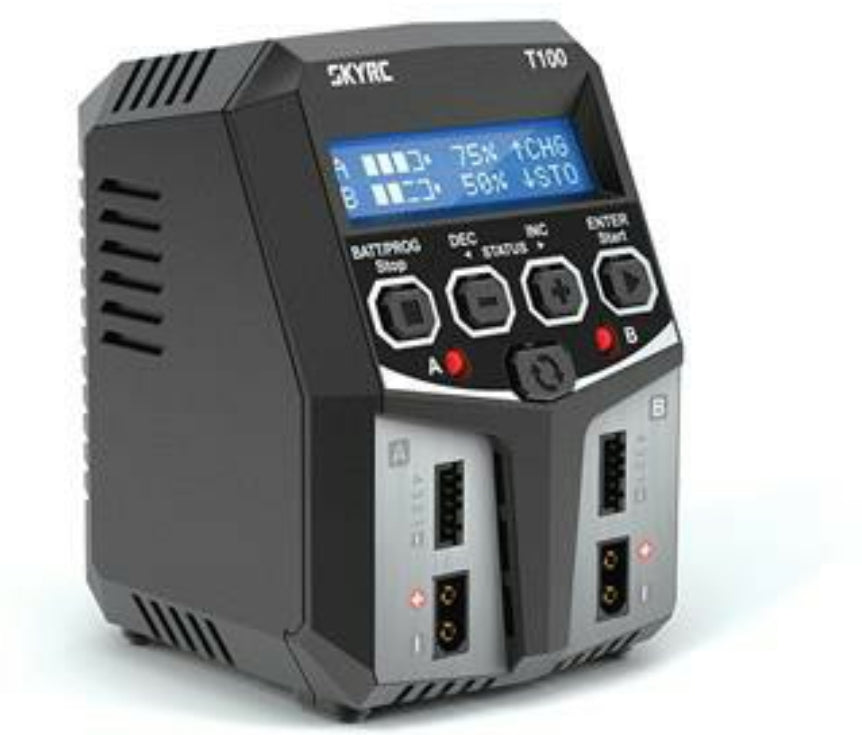

SkyRC T100 is a twin-channel charger with two independent circuits which can charge batteries of varying chemistries (LiPo / LiFe / Lilon / LiHV / NiMH / NiCd / Pb) simultaneously. Its sleek design allows easy front-loading plug-in convenience of balancing and XT60 ports. It is not only compact in size but also powerful in output with maximum 100W charging power and 5A charging current which makes charging more efficient. With the new AGM and cold charge modes, the user is free to charge their PB and AGM batteries on cold days.

Twin-channel Charger

SkyRC T100 allows you to plug 2 batteries into one charger simultaneously, and it will intelligently and automatically initiate the charging of 2 batteries at once to their maximum capacity. To top it all, the batteries being charged do not even need to have the same configuration. You can connect different chemistry(NiMH / NiCd / LiPo / LiFe / Lilon / LiHV / Pb)batteries into any of the charging ports.

AGM & Cold Charge Modes for PB Battery

SkyRC T100 can charge AGM(Absorbent Glass Mat) battery and also can be used for charging PB battery at very low temperatures.

Embedded XT60 Battery Connector

By embedding the XT60 battery connector in the charger, it is more convenient & safer for charging the most popular battery with XT60 connector and avoid the possibilities of reverse polarity for it.

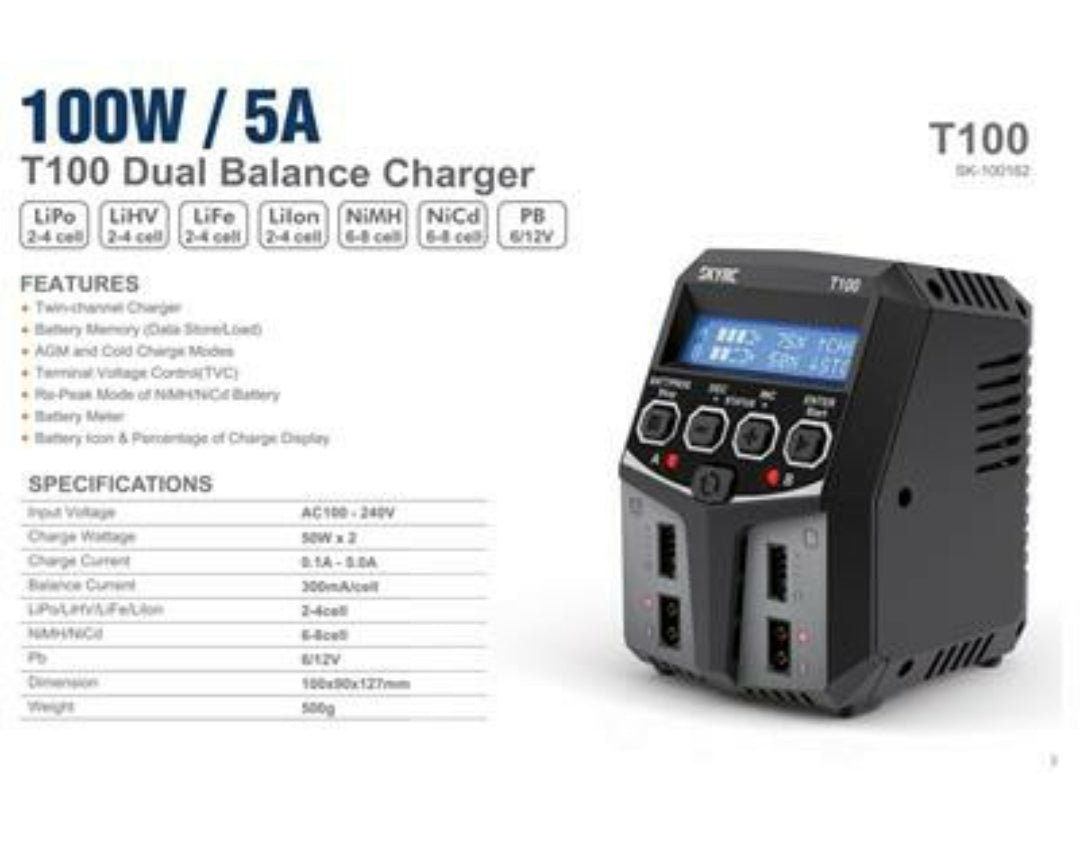

Specifications

Size and Weight
Case Material: Plastic
Case Size: 90x100x127mm
Weight: 500g

Display
Display Type: 2x16LCD
Display Backlight: Blue

Power
Input Voltage: AC 100-240V
Charge Wattage: 50Wx2

Battery
Battery Types/Cells:
LiPo/LiFe/LiIon/LiHV: 2-4 cells
NiMH/NiCd: 6-8 cells
Pb:6/12V
Battery Capacity Range:
LiPo/LiIon/LiFe/LiHV:100-50000mAh
NiMH/NiCd:100-50000mAh
Pb: 100-50000mAh

Charge and Discharge
Charge Voltage
LiPo: 4.18-4.25V/cell
LiFe: 3.58-3.7V/cell
LiIon: 4.08-4.2V/cell
LiHV: 4.25-4.35V/cellNiMH/NiCd: Delta peak detection: 3-15mV/cell ; Default: 4mV/cell

Discharge Cut-off Voltage
LiPo:3.0-3.3V/cell
LiFe:2.6-2.9V/cellLiIon: 2.9-3.2V/cell
LiHV: 3.1-3.4V/cellNiMH/NiCd:0.1-1.1V/cell

Charge Current: 0.1A-5.0A
Balance Cells: 2-4 cells
Balance Current: 300mA/cell
Safety Timer: 1-720minutes & OFF
Charge Method:CC/CV for Lithium batteries.
Delta-peak Sensitivity for NiMH/NiCd batteries.
CC/CV and float charge for PB batteries.

Instructions

Includes UK 240v input lead and no charge or balance

All leads available in another listing
