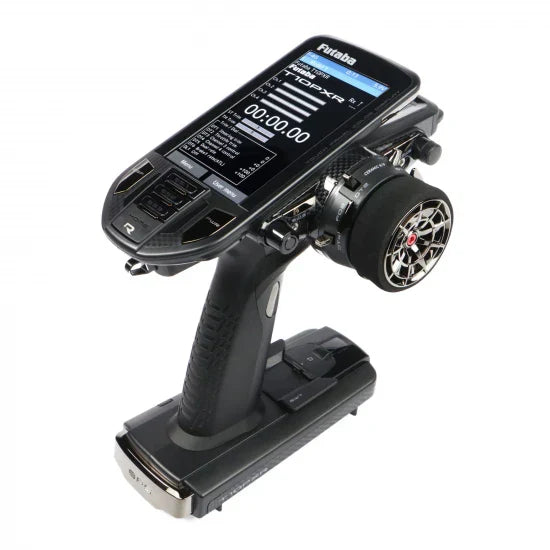

Futaba 10PX for RC Drift: Deep Dive Settings Guide + Why You Need an Acuvance S.BUS Adapter

The Futaba 10PX is widely regarded as one of the finest RC transmitters available — and in the hands of a serious drifter, it's a genuinely transformative piece of kit. But out of the box, most of its power is untapped. This guide covers the key settings you need to dial in for drift, and explains why pairing it with an Acuvance S.BUS adapter takes your setup to another level entirely.

Why the Futaba 10PX?

Before we get into settings, it's worth understanding what makes the 10PX stand out in a crowded market.

• T-FHSS Air / FASSTest dual protocol — ultra-low latency telemetry with rock-solid signal
• High-resolution 4096-step steering and throttle — finer control than most competitors
• Colour touchscreen interface — intuitive programming without needing a PC
• Extensive mixing and curve options — essential for drift-specific tuning
• Telemetry support — real-time motor temp, voltage, and RPM data on screen
• Lightweight and ergonomic — comfortable for long sessions

For drift specifically, the combination of high resolution and deep programmability makes the 10PX a genuine competitive advantage.

Key Settings for RC Drift

1. Steering Dual Rate (D/R) & Expo

This is your first port of call. Dual rate controls the maximum steering angle, while expo shapes how the servo responds around centre.

• Dual Rate: 70–85% — reduces full-lock sensitivity, gives you more usable steering range
• Expo: +30 to +50% — softens response around centre for smoother mid-drift corrections
• Tip: Set up two D/R rates on a switch — a lower rate for tight technical sections and a higher rate for high-speed sweepers

2. Throttle Curve

The 10PX allows you to build a fully custom throttle curve with multiple points. For drift, a gentle S-curve works well:

• 0% input → 0% output (no creep)
• 25% input → 15% output (soft initial pickup)
• 50% input → 40% output (gradual mid-range)
• 75% input → 65% output
• 100% input → 100% output

This compresses the lower throttle range, giving you finer control over wheelspin initiation without sacrificing top-end when you need it.

3. Brake Curve

Equally important. A linear brake curve is too aggressive for drift — you want progressive initial bite:

• 0% → 0%
• 25% → 10%
• 50% → 35%
• 75% → 65%
• 100% → 100%

This prevents snap-oversteer on entry and gives you more time to modulate weight transfer.

4. Sub-Trim & Servo Travel

• Set sub-trim to zero and adjust mechanically where possible — keeps your digital range clean
• Servo travel (ATV): Set equal left and right, then fine-tune for your steering rack geometry
• Use asymmetric ATV if your chassis has more lock one way than the other (common on RWD drift builds)

5. Trim Step

• Reduce trim step to 1 or 2 — prevents accidental large trim changes mid-session
• Assign throttle trim to a rotary dial for on-the-fly neutral adjustment

6. Fail-Safe

• Set throttle fail-safe to neutral (0%) — critical for safety if signal is lost
• Set steering fail-safe to centre

7. Mixing (STR → THR)

One of the 10PX's most powerful drift features. This mix reduces throttle automatically when full steering lock is applied — mimicking real car behaviour and preventing snap-out.

• Mix rate: Start at -10 to -15% throttle reduction at full lock
• Adjust to taste — too much and the car feels sluggish in full-angle; too little and it snaps

8. Telemetry Setup

Connect a Futaba telemetry sensor (temperature or voltage) and configure alerts:

• Motor temp warning: 85°C
• Battery voltage low: 3.6V per cell
• Displayed live on the 10PX screen — no need to pit to check temps

The Acuvance S.BUS Adapter: Why It Matters

If you're running an Acuvance Xarvis or Xarvis XX ESC, the S.BUS adapter is one of the most underrated upgrades you can make.

What Is S.BUS?

S.BUS is Futaba's digital serial communication protocol. Instead of running individual PWM signal wires from your receiver to each component, S.BUS carries all channel data down a single wire — and does it with significantly higher resolution and lower latency than traditional PWM.

What Does the Acuvance S.BUS Adapter Do?

The Acuvance S.BUS adapter allows your Xarvis ESC to receive its throttle and brake signals directly via S.BUS from your Futaba receiver, rather than through a standard PWM connection.

Benefits:

• Higher resolution signal — S.BUS delivers up to 2048 steps vs ~1024 for standard PWM. Combined with the 10PX's 4096-step output, you get dramatically finer throttle and brake resolution
• Lower latency — digital serial communication is faster than analogue PWM, meaning your ESC responds more quickly to input changes
• Cleaner wiring — one cable replaces multiple signal wires, reducing clutter and potential interference points
• Improved consistency — no signal degradation from long cable runs or interference
• Unlocks Acuvance-specific features — some Xarvis firmware features are only accessible or fully functional via S.BUS input

Real-World Impact

In practice, the difference is most noticeable in two areas:

1. Throttle modulation at low speeds — the increased resolution means smaller throttle inputs register more accurately, giving you better control over wheelspin initiation on slow technical sections
2. Brake feel — more resolution in the brake channel translates to more progressive, predictable deceleration on entry

For competitive drifters chasing consistency, this is not a marginal gain — it's a meaningful improvement in how precisely your car responds to your inputs.

Installation

1. Connect the adapter to the S.BUS output on your receiver
2. Connect the adapter output to the Xarvis signal port
3. Enable S.BUS input in the Xarvis PC software
4. Calibrate throttle and brake endpoints as normal

Always refer to the latest Acuvance documentation for your specific ESC firmware version.

The Complete Drift Stack

Final Thoughts

The Futaba 10PX is already one of the best drift transmitters on the market — but it's the combination of proper settings and quality signal chain that separates good driving from great driving. Take the time to build your throttle and brake curves properly, use the STR→THR mix, and if you're running an Acuvance ESC, the S.BUS adapter is a no-brainer upgrade.
