Reve D Breve ESC: Full Breakdown, Specs & Recommended Settings for RC Drift

If you're serious about RC drift, your ESC choice matters more than most people realise. The Reve D Breve ESC has become one of the most talked-about speed controllers in the competitive drift scene — and for good reason. Compact, programmable, and tuned specifically with drift in mind, it's a unit that rewards those who take the time to dial it in properly.

What Is the Reve D Breve ESC?

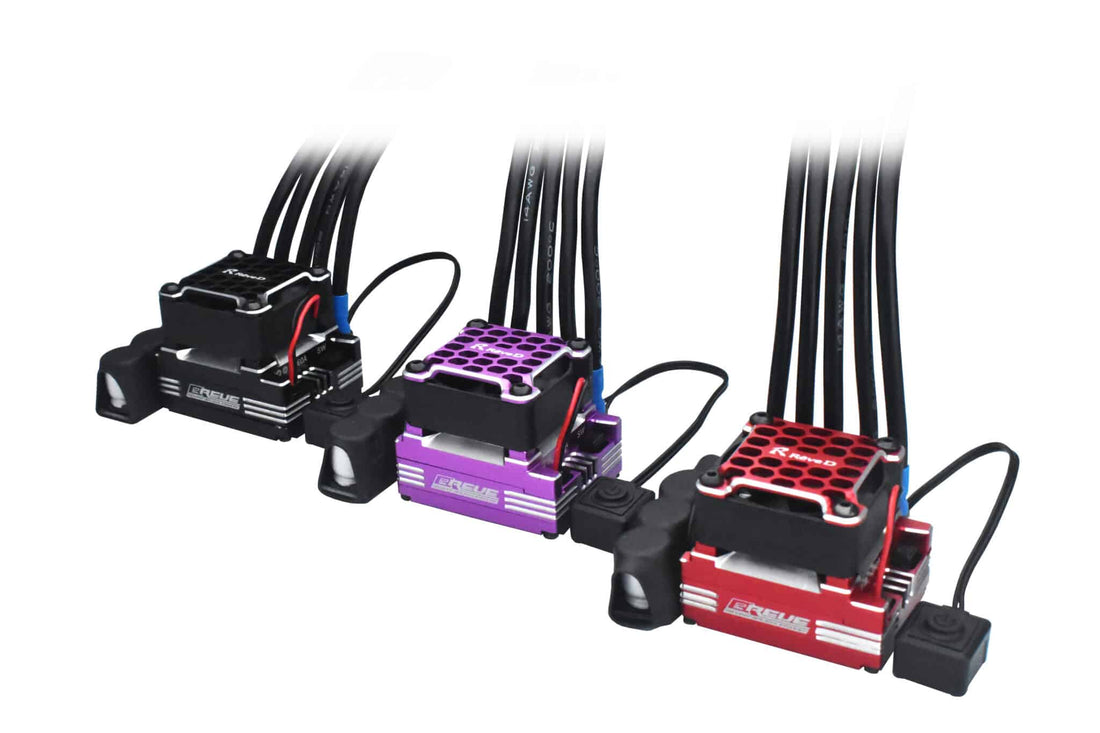

The Breve is a brushless ESC developed by Reve D, the Japanese RC drift specialist known for precision engineering and competition-grade components. Unlike generic ESCs adapted from touring or racing applications, the Breve was designed from the ground up with drift-specific characteristics — smooth, linear throttle response, fine-grained braking control, and a compact form factor that fits neatly into tight chassis layouts.

Key Specifications

Note: Always verify specs against the latest Reve D documentation, as firmware updates can affect supported configurations.

Why Drift-Specific ESC Design Matters

Most ESCs are engineered for maximum forward acceleration — the kind of linear power delivery that wins touring car races. Drift is fundamentally different. You need:

• Controlled wheelspin — not just full-send power
• Smooth, progressive throttle — to maintain angle without snapping out
• Precise braking — for entry transitions and weight transfer
• Consistent low-speed torque — for slow-speed technical sections

The Breve addresses all of these through its programmable parameters, which go well beyond what you'd find on a budget ESC.

Programming the Breve: Key Parameters Explained

The Breve is programmed via the Reve D programming card or USB interface with PC software. Here's a breakdown of the most important settings:

1. Punch / Acceleration

Controls how aggressively power is delivered from a standing start or throttle input.

• Drift setting: Low to medium (1–3 out of 10)
• Higher punch = snappier response, harder to control angle
• Lower punch = smoother entry, better for technical courses

2. Drag Brake

The amount of braking applied when throttle is at neutral (zero position).

• Drift setting: 10–30%
• Drag brake helps simulate the feel of a real car's engine braking
• Too high = car slows too aggressively mid-drift, kills momentum
• Too low = car feels floaty and hard to control on entry

3. Brake Force (Active Braking)

Maximum braking power when the trigger is pulled into the brake zone.

• Drift setting: 50–80%
• Needs to be strong enough for sharp entries but not so aggressive it locks up
• Pair with brake frequency for smoother feel

4. Brake Frequency

The PWM frequency of the braking signal — affects how smooth or grabby braking feels.

• Drift setting: High frequency (8–16kHz)
• Higher frequency = smoother, more progressive brake feel
• Lower frequency = more on/off, less predictable

5. Throttle Curve / Expo

Adjusts the sensitivity of the throttle around the neutral point.

• Drift setting: Mild positive expo (10–20%)
• Reduces twitchiness around centre throttle
• Gives you a larger "dead zone" to work with during transitions

6. Motor Timing

Advances or retards the motor's timing, affecting power delivery and heat.

• Drift setting: Low to medium (0–15°)
• Higher timing = more top-end power, more heat
• Lower timing = smoother, cooler running — better for sustained drift sessions

7. Turbo / Boost

Some firmware versions support turbo/boost modes for additional top-end punch.

• Drift setting: Disabled or very mild
• Turbo can cause unpredictable power spikes mid-drift — generally not recommended for technical driving

Recommended Baseline Settings (3S / 10.5T Motor)

These are a solid starting point for a 3S setup with a mid-range motor. Adjust drag brake and punch first — these two parameters have the biggest impact on feel.

Pairing the Breve with the Right Motor

The Breve works best with sensored brushless motors for the smoothest low-speed response. Reve D's own Breve Motor range is an obvious pairing, but it's also compatible with popular options from:

• Hobbywing (Xerun series)
• Maclan
• Reedy
• Yokomo (BL-RS2 series)

For 3S drift, 10.5T–13.5T is the sweet spot. Go lower turn count and you'll be fighting wheelspin constantly; go higher and you lose the torque needed for angle.

Heat Management

The Breve runs cool for its output class, but sustained drift sessions on 3S can push temperatures. Keep an eye on:

• ESC temp: Keep below 80°C
• Motor temp: Keep below 90°C
• Use a heatsink and fan if running back-to-back sessions
• Reduce motor timing if temps are climbing

Final Thoughts

The Reve D Breve ESC is a premium, drift-focused unit that gives you the control and programmability to fine-tune your setup for any track or driving style. It's not the cheapest option on the market, but for competitive drifters who want precision over compromise, it's hard to beat.

Start with the baseline settings above, run a few packs, and adjust drag brake and punch to suit your driving style. Once dialled in, the Breve delivers a consistency that cheaper ESCs simply can't match.
