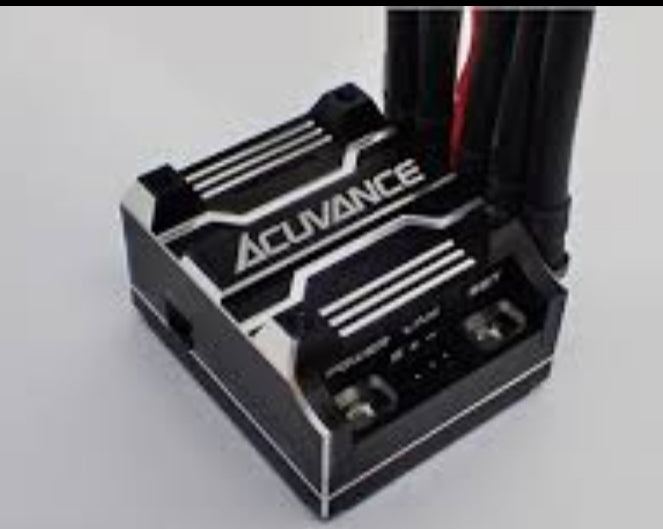

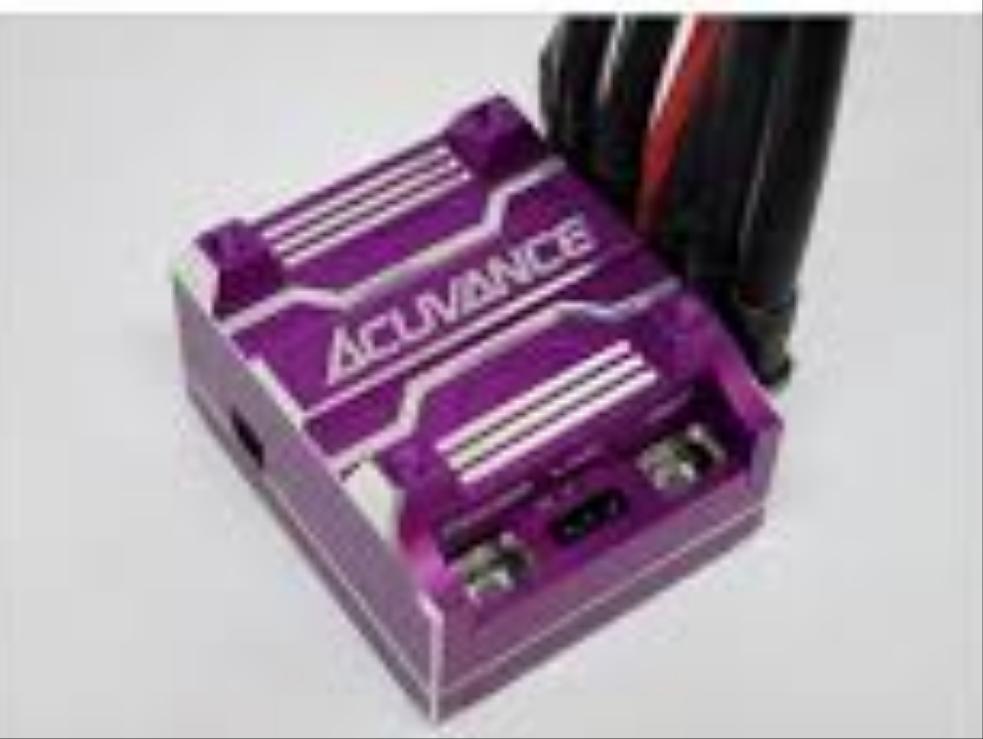

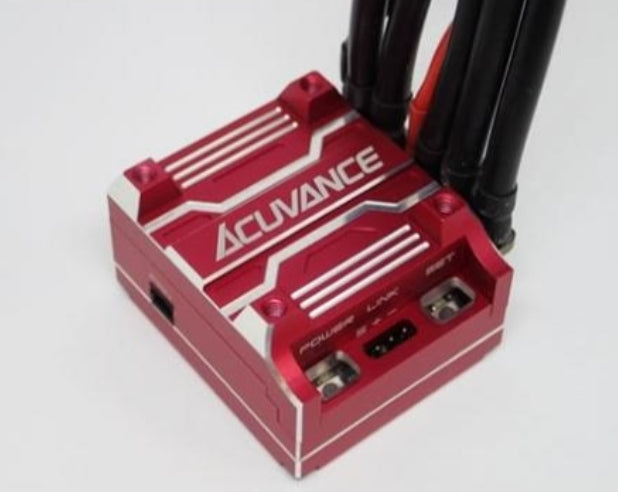

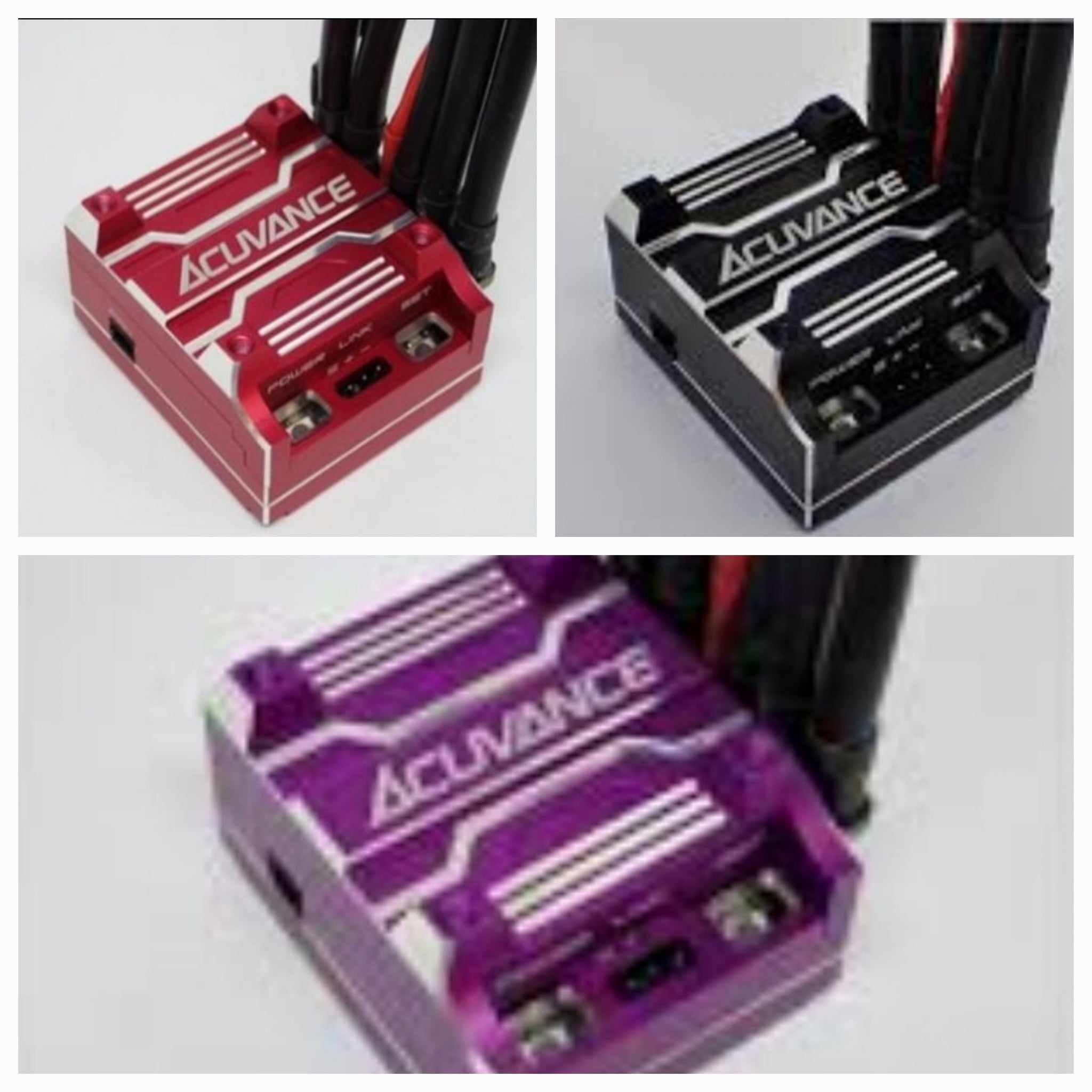

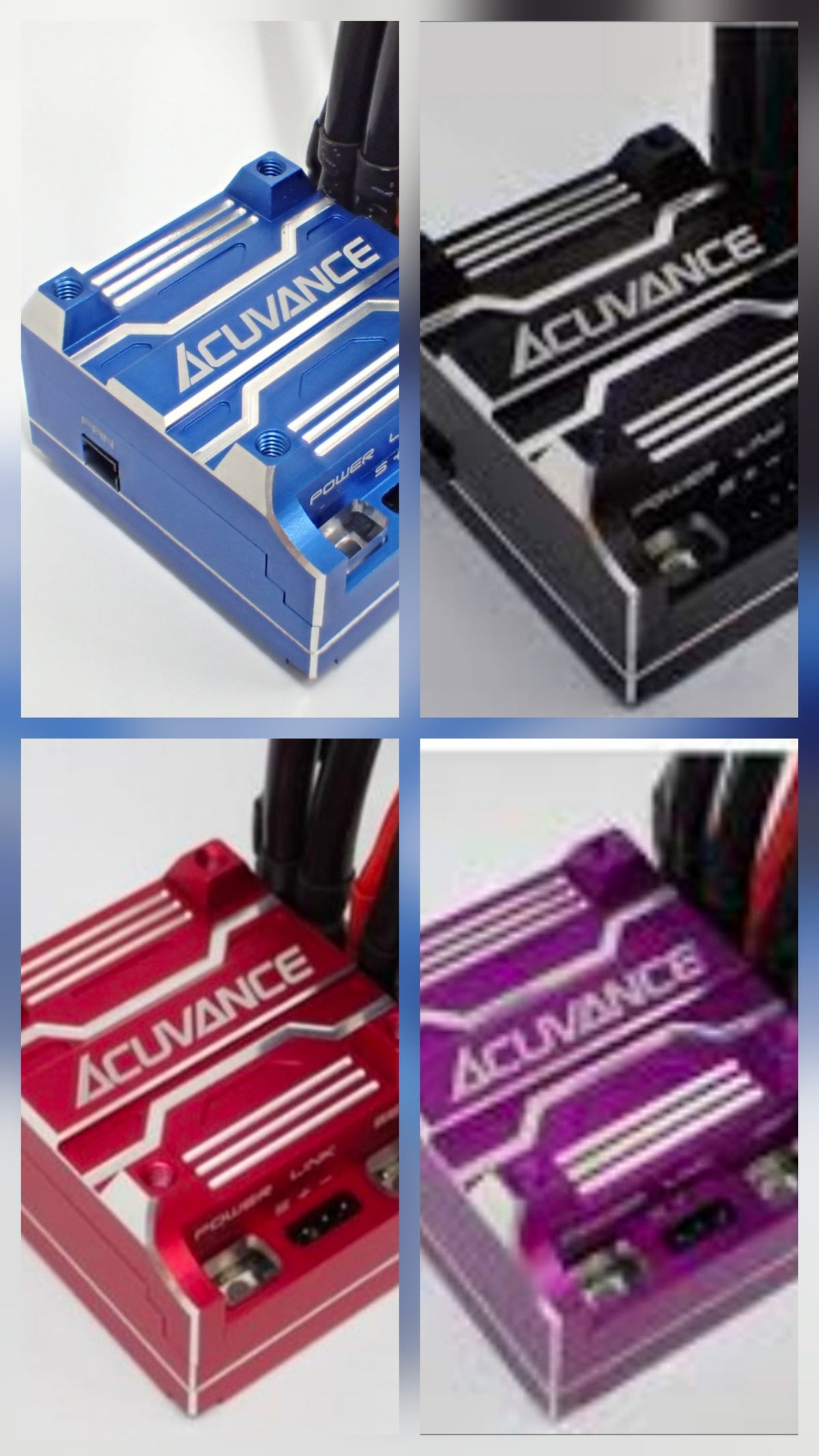

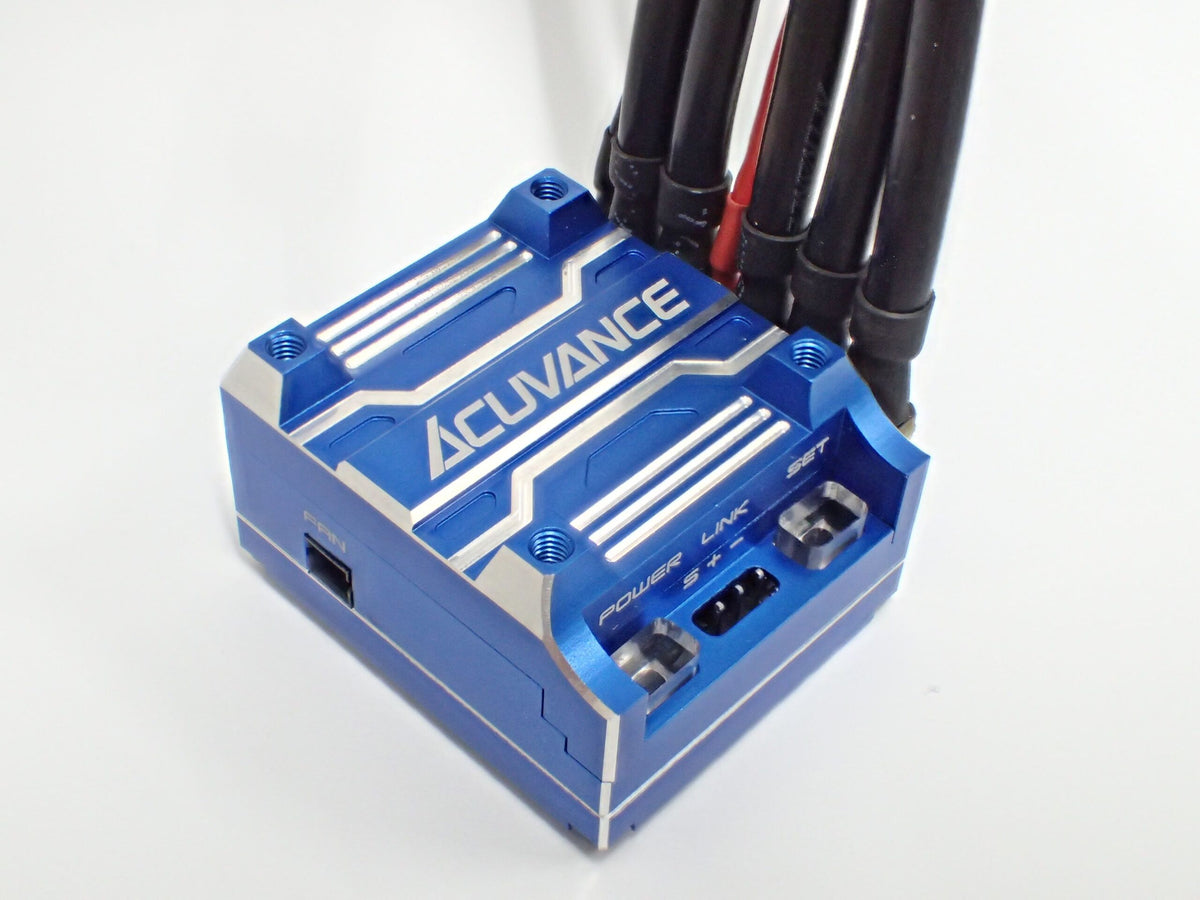

XARVIS XX

For all users aiming for the top

The highest model performing high potential in every category.

Equipped with the industry's highest performance FET device

(Our research as of December 2019)

E.S.C. is equipped with the highest level element in the FET element that determines the essential performance of E.S.C. Thereby, the control circuit has been brushed up.

 The basic performance has been greatly improved, and the torque feeling and high efficiency required by the driver has been obtained.

"XARVIS XX" combines the best output in the RC industry with protection of substrate damage by reverse connection by optimizing the FET circuit.

(Our research as of December 2019)

In addition, it is equipped with an "Alert LED" that informs you of the reverse connection.

This function prevents E.S.C. board damage due to reverse connection for about 10 seconds.

* This protection function is only effective for ESC circuit board.

This function do not guarantee the protection of Chevalier series, capacitors or external devices.

Equipped with BEC voltage switching (6.0 / 7.4V) function

The output current has been increased in addition to the BEC voltage switching function.

 It powerfully drives a 7.4V input compatible high torque servo.

Equipped with two dedicated ACUVANCE cooling fan terminals.

(Including fan for FLEDGE)

Two FAN dedicated terminals are installed to enable simultaneous connection of REY-Storm and FLEDGE.

＊[REY-Storm / XARVIS exclusive high-speed rotation FAN unit ]

＊[FLEDGE / Forced air-cooled brushless motor]

（When using ACUVANCE FAN, the original performance may not be exhibited by power supply from the BEC terminal of the receiver.）

Rebuilt our original 3D bridge structure design.

(FAN floating installation)

It is a structure that the FAN is installed floating above the E.S.C.

XARVIS adopted this 3D design that realized efficient cooling for the first time in the world.

The X-shaped design on the top of the ESC created an efficient airflow.

Higher cooling performance has been obtained.

New capacitor mounting terminal

A small terminal for capacitors is installed in addition to the battery connection terminal. This makes the soldering work easier.

XARVIS XX original setting data will be added at any time by installing a new program control circuit　

Based on XARVIS, a new unique program control circuit to XARVIS XX is installed.

 In addition to the newly installed setting items "torque level / torque end point" and "BEC voltage switching", setting items dedicated to XARVIS XX will be added at any time.

 [Torque level]: Adjusting the feeling of acceleration / deceleration torque.

[Torque end point]: The neutral position is the starting point of the effect, and it is an item that determines up to which throttle position the torque level is effective.

Refer to the instruction manual for details.

The torque level and torque end point functions cannot be used or set incorrectly when using our motors before LUXON BS and motors of other manufactures.

In addition, the torque and BEC-related functions are TAO II exclusive setting items when XARVIS XX is released, but we plan to support FUTABA S.BUS compatible transmitters in near future.

Fits wireless and wired communication by TAOⅡ.　【※１】

The settings on the XARVIS XX unit can be easily changed using the buttons on the main unit, but the use of TAOⅡ greatly expands the settable items and values ​​and dramatically improves drivability.

Since the LINK terminal mounted on the front of XARVIS XX is used for communication with TAOⅡ, there is no need to replace the RX cable from the receiver.

Furthermore, by connecting the LINK terminal and the Brain Unit（＊） via the Air Link Adapter（＊） wireless two-way communication with TAO II is possible.

＊Brain Unit (TAO II All-in-One Package Accessory or OP-15012)

＊Air Link Adapter (OP-15065)

Also it fits wireless communication with FUTABA S.BUS compatible transmitter (update required)

If you are using Futaba S.BUS compatible transmitter, you can connect an optional S.BUS adapter (OP-15067) to change setting data using the transmitter screen. Motor speed, ESC temperature, Battery voltage, etc. can be displayed on the transmitter in real time.

Caution: XARVIS XX update is required to perform wireless communication using the transmitter.

 * Please contact Futaba for compatible transmitters. (The transceiver may need to be updated.)

The setting data cannot be stored in the transmitter, so please use TAOⅡ for storing and managing the setting data.

* When XARVIS XX is updated to support S.BUS, settings can be changed in TAO II and data can be saved, but the data log function by TAO II cannot be used.

* Items that can be set by TAOⅡ and items that can be set by a FUTABA S.BUS compatible transmitter may be different

Supports setting changes by Ne-St

XARVIS dedicated setting controller [Ne-St] can also be used.

A version with setting data suitable for XARVIS XX will be released.

Non-Boost / Non-Turbo status can be viewed with LED

The LED flashes when not using boost / turbo. Compatible with regulations for competitions where the use of these features is restricted.

Update TAOⅡ to enable communication between TAOⅡ and XARVIS XX

After updating TAO II to XARVIS XX compatible firmware, XARVIS and AIRIA settings can be changed (both wired and wireless), but please note the following.

・ Setting items added as XARVIS XX exclusive functions, such as torque level related functions and BEC voltage switching functions, do not function when using XARVIS and AIRIA.

・ The data log function is available only when using XARVIS XX.

NOTE:

XARVIS and XARVIS XX can control not only by ACUVANCE brushless motors but also by sensored brushless motors made by other manufactures.

However, if you use it in combination with a motor made by another manufacture and a problem occurs, we will not compensate for the ESC or the motor at all.
