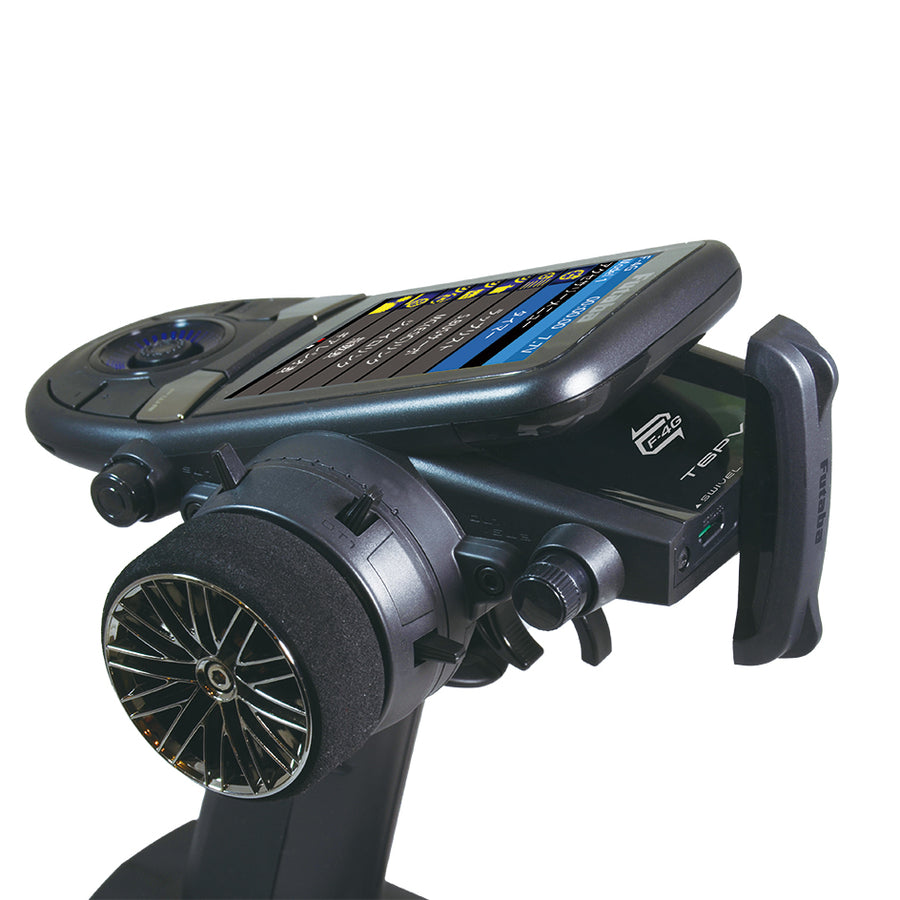

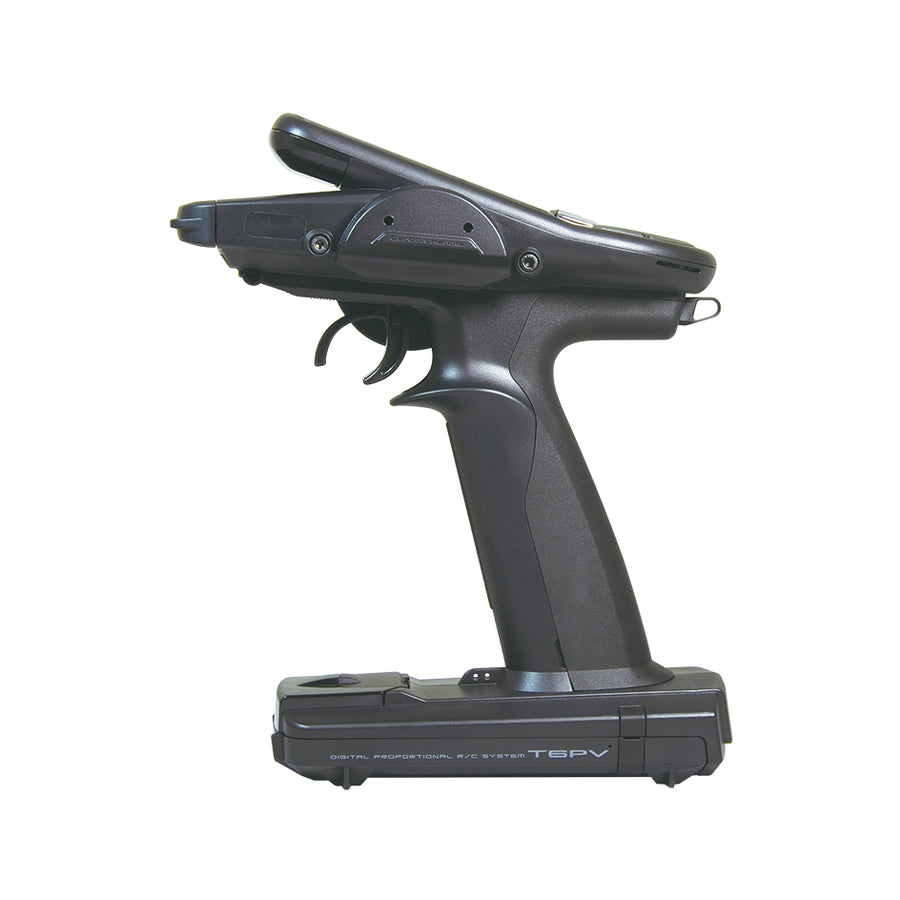

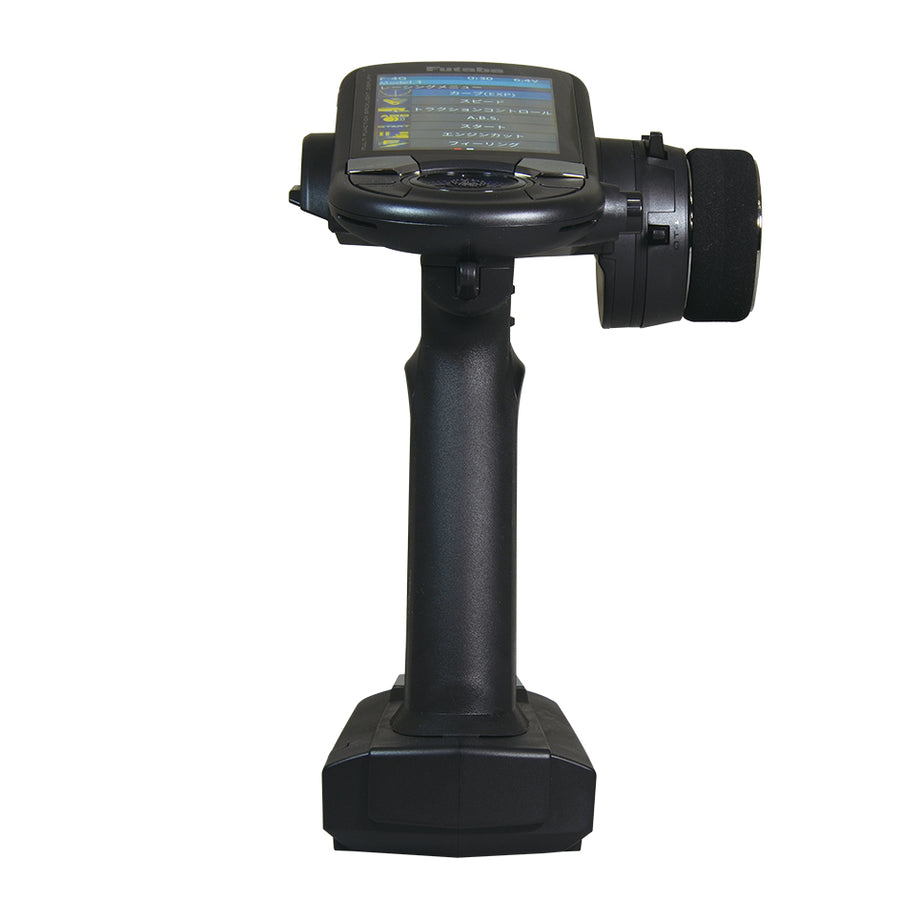

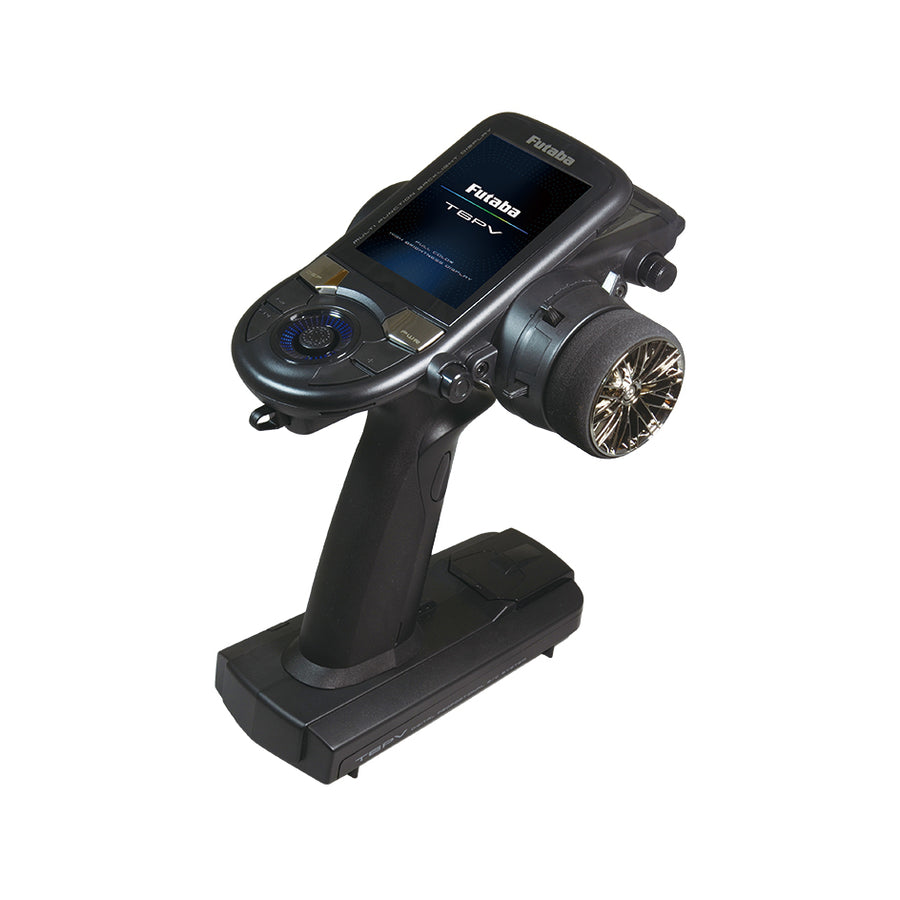

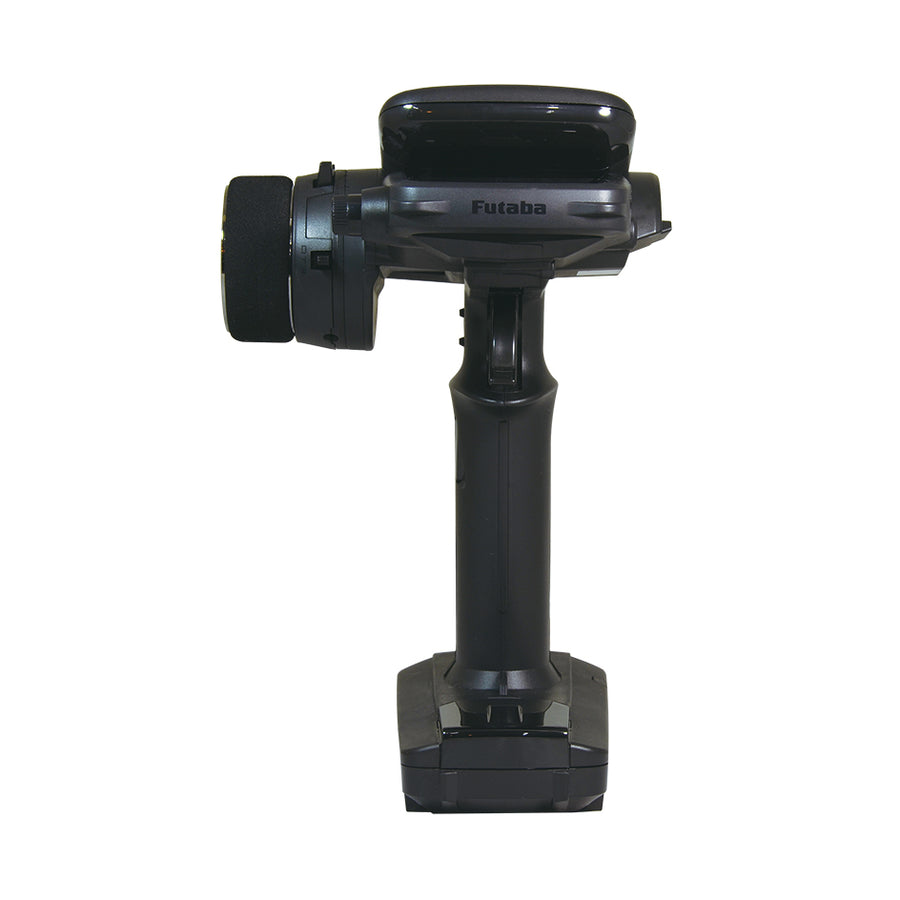

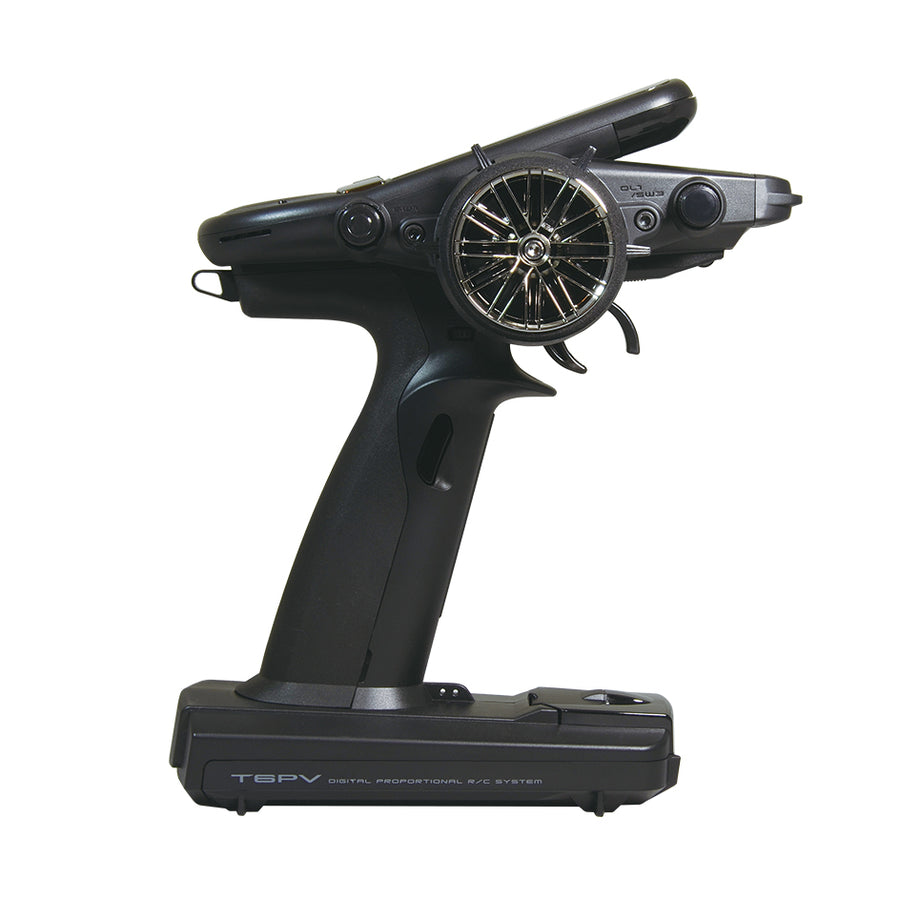

Futaba 040207 6PV w/ R404SBS x1

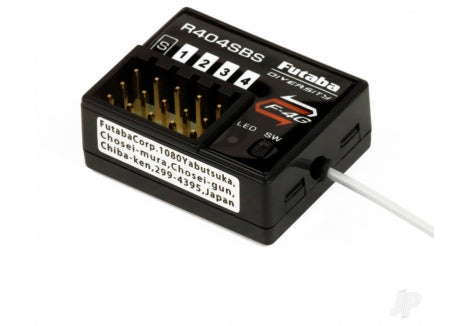

This is a mid-high class transmitter that adds elements of the T10PX to the operability of the T4PM Puls. The full-color display allows for intuitive operation. In addition, by supporting the fastest system "F-4G", it is easier to feel the "feeling function" that gives stability to operation. ★The T6PV is a transmitter compatible with "F-4G", "T-FHSS", "S-FHSS", and "MINI-Z". ★The R404SBS and R404SBS-E are receivers compatible with "F-4G".

●F-4G system and UR mode (※Note 1) provide high-speed response approaching that of the T10PX

●Equipped with 6 systems: F-4G, T-FHSS, S-FHSS, MINI-Z EVO, MINI-Z EVO2, MINI-Z FHSS

T-FHSS SR mode is not supported, but the servo's "SR mode" can still be used with the servo settings of the F-4G system.

●Normal, Big, and Drift "Model Types"

●Also equipped with settings for crawlers

●Feeling adjustment function: By taking advantage of the high-speed response and adding a mild flavor, it becomes easier to drive.

●Supports up to 6 channels (※Note 2)

●Lightest in its class & highly balanced design

●Equipped with a micro SD card slot
The micro SD card is used to store model data, telemetry data, display photos of your car on the radio, and when updating the software. (Micro SD card sold separately. Supports SD/SDHC, not SDXC)

●New wheel unit/APA(※Note 3)/APA angler/trigger

●Grip rubber: In addition to the included size (M), you can choose the size that is most familiar from the optional grip rubber (S or L).

●Wheel position can be adjusted with the steering APA (Included: Steering APA (24.0) & Angle Spacer (5°))

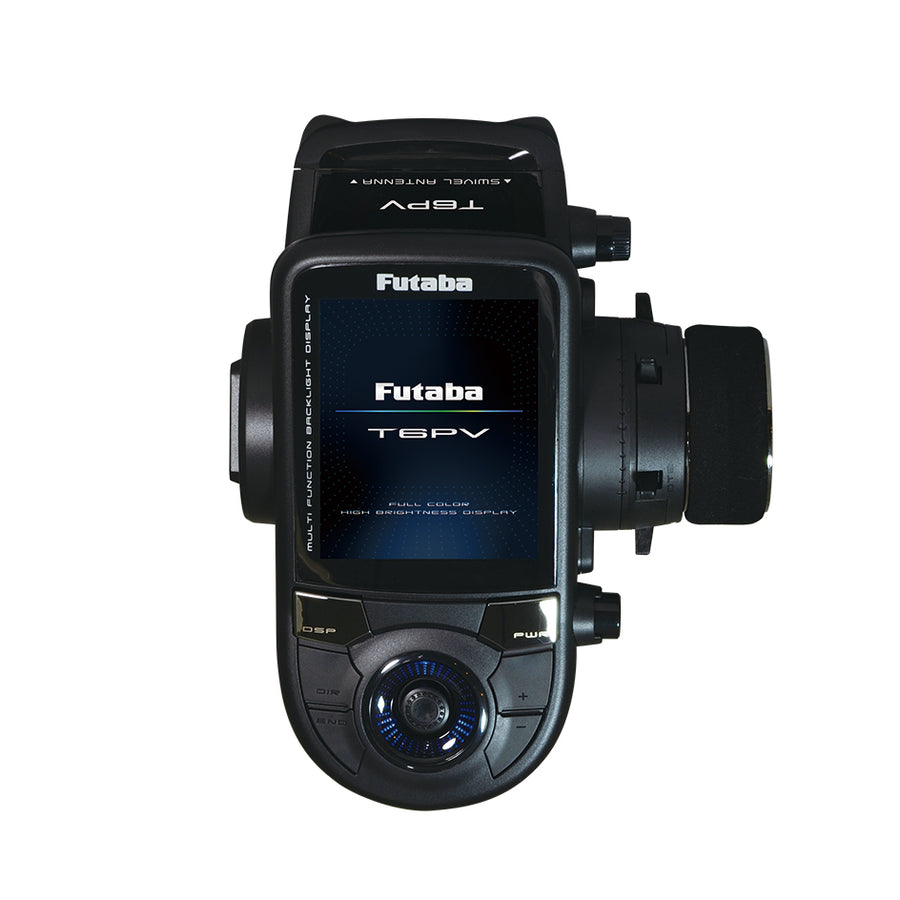

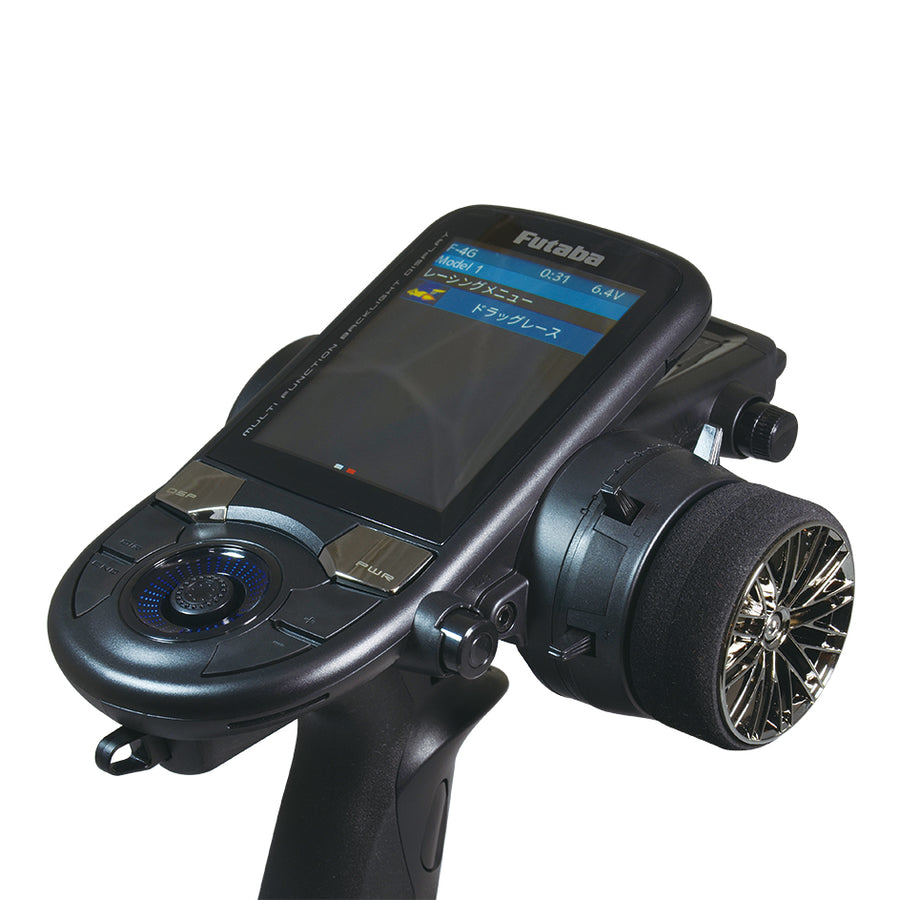

●Setup with high-brightness wide-angle full-color LCD and jog key

●Equipped with a body catch pin holder at the bottom of the grip. (Body catch pin not included)

●Dry battery (AA/AA) specifications. You can also use the separately sold LiFe battery (FT2F1100B, FT2F1700B V2, FT2F2100B V2).
For LiFe batteries, you can also use the non-contact charger (LF-02).

Li-Po battery for Tx (LT2F2000B) Nickel-metal hydride battery for Tx (HT5F1800B) Sold separately.

●A wide range of options are available to create a unique unit

*Note 1: Be sure to use a servo that supports UR mode.

*Note 2: When using 5 and 6ch in F-4G mode, use an S.BUS2 servo or SBD-2 for the S.BUS2 port of the R404SBS/R404SBS-E.

*Note 3: Adjustable Positioning Adaptor Adapter for changing position

Functions and specifications

Setup menu

●Receiver settings (compatible with F-4G/T-FHSS/S-FHSS, and MINI-Z)

Please refer to here for a list of our receivers that are compatible with each system.

MINI-Z is also compatible with MINI-Z EVO, MINI-Z EVO2, and MINI-Z FHSS (*Note 1).

Telemetry function is only available for F-4G, T-FHSS, and MINI-Z EVO2 bidirectional mode.

*Note 1　MINI-Z FHSS requires the MINI-Z FS-RM005 module (Kyosho Co., Ltd.).

●Servo view: Allows you to check servo operation for all channels. You can check operation when adjusting steering angle or setting mixing functions.

●Throttle mode: Allows you to set neutral brake, which applies the brakes when the throttle trigger is in the neutral position.

●Reverse: This function determines the direction in which servos and other devices operate in response to the operation of the steering, throttle, channels 3/4, and other spare channels on the transmitter.

●Sub trim: When assembling a model, this is used to fine-tune the center position of the servo horn, which serves as the reference, on the linkage that connects the servo horn of each servo and the parts with a rod.

●Endpoint: This function is used to adjust the steering angle left and right when using linkage, the throttle high/brake operation amount, and the up/down operation amount of channels 3/4 and other spare channels.

●Fail-safe function: This function is used to set the servo operation position when the receiver is unable to receive the transmitter signal for some reason or when the receiver battery voltage drops. The fail-safe, hold, and OFF modes are automatically released when the receiver is able to receive the transmitter signal again.

●Acceleration: The rise characteristics of the throttle forward/brake near neutral can be adjusted separately.

●Trim/dial settings: The functions that can be operated with the digital trim (DT1 to DT6) and the dial (DL1) can be set.

●Switch settings: Select the functions to be operated with the push switches (SW1 to SW3) and set the operation method.

●Idle up: Used to improve engine starting by raising the idle when starting the engine of a gasoline engine car (boat). This function is also effective when you want to prevent braking phenomenon when the power is turned off while driving due to the gear ratio setting or the motor used in the electric car. However, if you are using MC971CR, MC970CR, MC960CR, MC950CR, MC851C, MC602C, MC402CR, etc., as with the neutral brake function, turn on the idle up function switch after the ESC recognizes the neutral position and becomes operable.

●D/R, ATL

●Channel setting: This function allows you to assign steering or throttle to any channel. This is a convenient function when you want to use steering or throttle on another channel or when you want other channels to operate in the same way as steering or throttle.

Model menu

●Model select, model copy

●Model name

●Model delete (in SD card)

●Data reset

●Model type: You can use the initial settings suitable for 1/5 models and drifting.

Mixing menu

●Steering mixing

●Brake mixing

●Gyro mixing

●4WS mixing

●Dual ESC

●CPS mixing (1,2,3): When using CPS-1 (optional), you can set the LED lighting pattern, etc.

●Tank mixing: Mixing for tracked vehicles such as tanks.

●Program mixing (1,2,3,4,5): You can also set the mixing master to telemetry.

●Winch mixing: Mixing effective for crawlers.

Racing menu

●Curve (EXP): You can set steering, throttle, and brakes individually.

●Speed: You can set steering and throttle individually.

●Traction control: By operating the throttle intermittently, you can steer smoothly and drive on the ideal line. In addition, in drift cars, you can reproduce a pseudo rev limiter sound by intermittently operating the motor in the high point direction.

●A.B.S: In full-time 4WD cars, braking while cornering will cause understeer, but by using this function, you can clear the corner smoothly.

●Start: By operating the throttle trigger slowly without losing grip, the trigger position will automatically switch to the preset point, allowing for a smooth start.

●Engine cut: This function operates the throttle servo to a preset position (engine cut position) so that the engine can be stopped with a switch.

●Feeling: This function makes the response milder when the servo response is too sensitive and difficult to operate. The mild side will slow the response, and the aggressive side will speed up the response. Feeling adjustment OFF is the fastest response state.

●Drag race (trans brake): By stopping the car with the throttle (trigger) fully open and releasing the trans brake, sharp acceleration is possible.

Accessory Menu

●Timer: Use one of four types of timers: up timer, fuel down timer, lap timer, and lap navigate timer.

●Lap List: Call up when checking lap memory data (each lap time) stored by operating the lap timer.

●S.BUS Servo: Dedicated function to change parameters of Futaba S.BUS / S.BUS2 servos.

●UR Servo Settings Change

●MC (ESC) Link: Allows you to set the ESC.

●Gyro Link: Allows you to set the gyro.

●Index Table: Allows you to display an index table for DD cars.

●Gear Ratio Table: Calculates the final reduction ratio from the input pinion gear, spur gear, and secondary reduction ratio of the gearbox, and displays it in a list.

●END/DIR Button Settings: Allows you to customize the END/DIR button as a button to call up your favorite menu.

●Home Screen Display Settings: Allows you to customize the display of the home screen.

●Custom Menu Editing: Allows you to create your own frequently used functions.

●Warning display: Low battery alarm, power off warning, MIX warning

System menu

●Display settings: Backlight brightness, dimming time, etc. can be set.

●System information: User name can be set, display language, and telemetry information unit can be selected with the jog key. Also displays the software version.

●Buzzer: Switch/trim/jog key operation sound and warning alarm sound can be adjusted.

●Battery settings: By setting the battery type, the appropriate battery alarm voltage can be obtained.

●Total timer: The accumulated time that the power is ON can be displayed on the home screen.

●LED settings: The brightness and lighting method of the pilot LED light (always on, off, backlight linked) can be set.

●Adjuster: The neutral position and operating angle of the steering wheel and throttle trigger can be corrected.

●Receiver update: Updates can be performed via the radio control.

[Accessories]

● Wheel position change adapter APA-M × 1

● Bag of mounting screws × 1

● Wheel adapter 32° × 1

● Brake lever L × 1

● Angle spacer 5° × 1

● Large diameter steering wheel × 1

● UR / SR label

● Instruction manual × 1

● Hexagonal wrench
