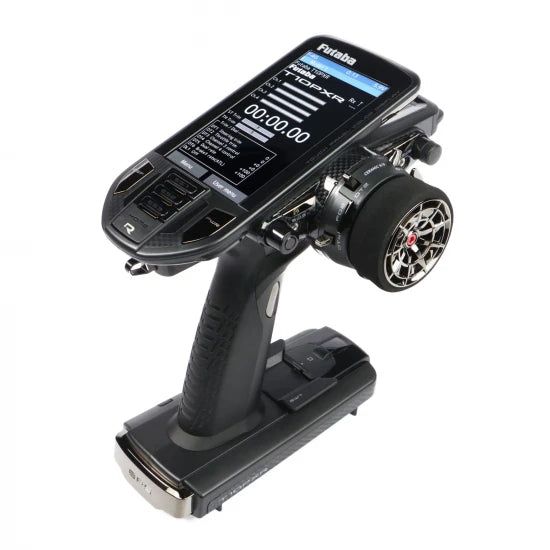

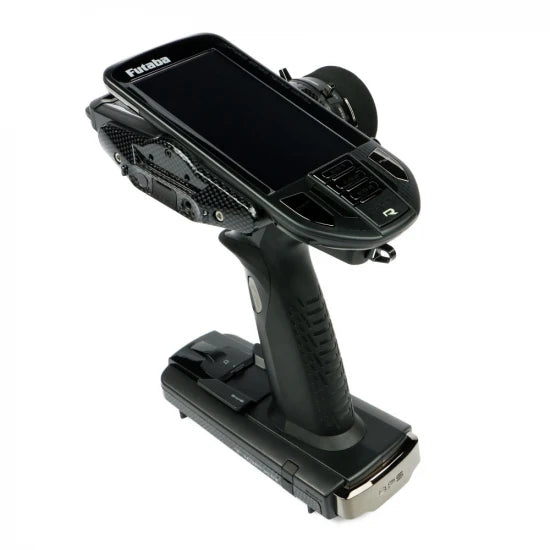

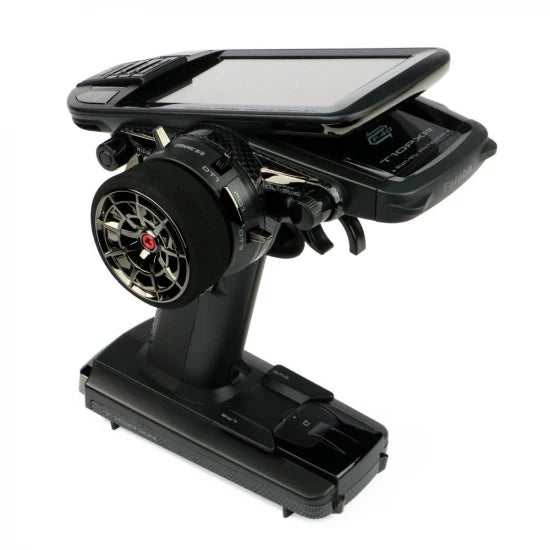

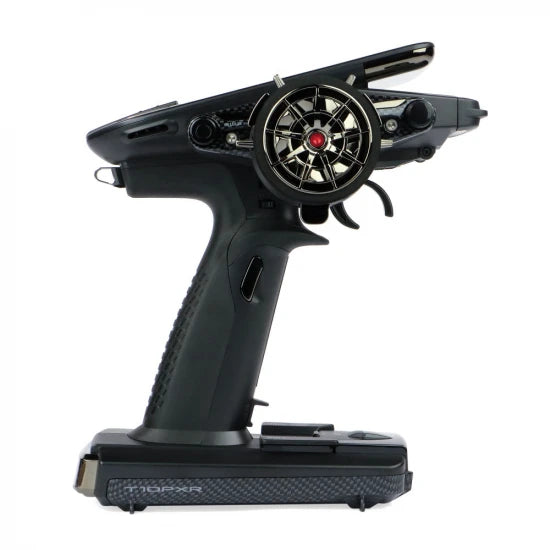

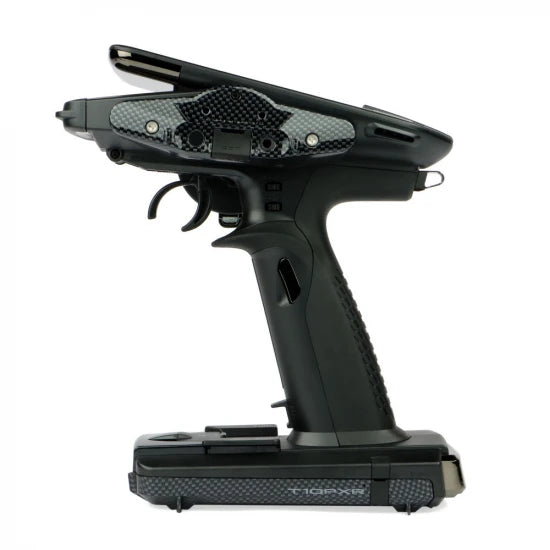

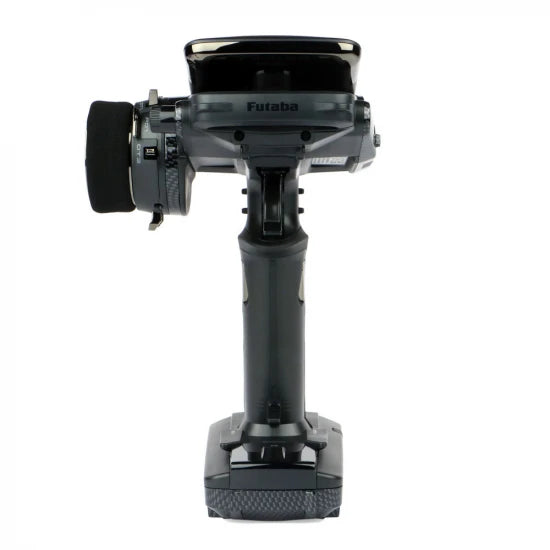

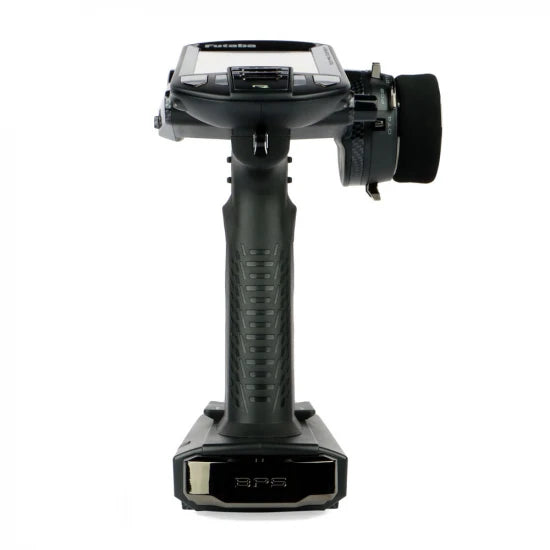

Futaba T10PXR With R404SBS-E Receiver
The Futaba T10PXR with R404SBS-E receiver is a flagship 10-channel surface radio engineered for competitive driving and deep customisation. Backed by Futaba’s F-4G system, it delivers rapid response and comprehensive telemetry, all navigated via a bright 4.3 inch HVGA transflective colour touchscreen. Part number FUT05003236-3.
With 40 model memories and extensive mixing, the T10PXR adapts from 1/8 race buggies to scale trucks, crawlers and track-driven vehicles. Dedicated menus for truck and track applications simplify complex setups such as multi-axle steering and dual ESC control, while advanced tuning tools help refine traction, balance and consistency across surfaces.

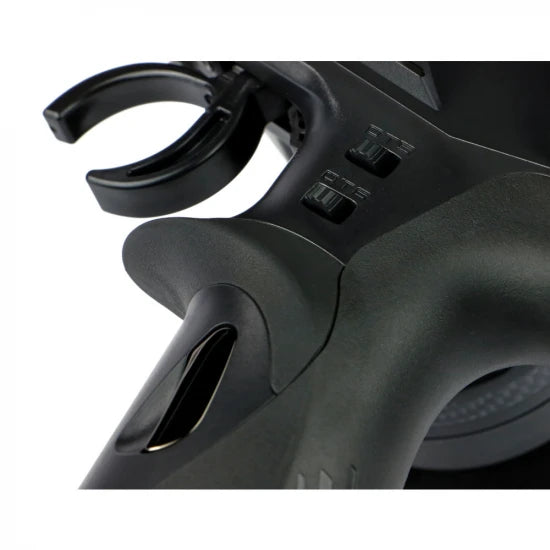

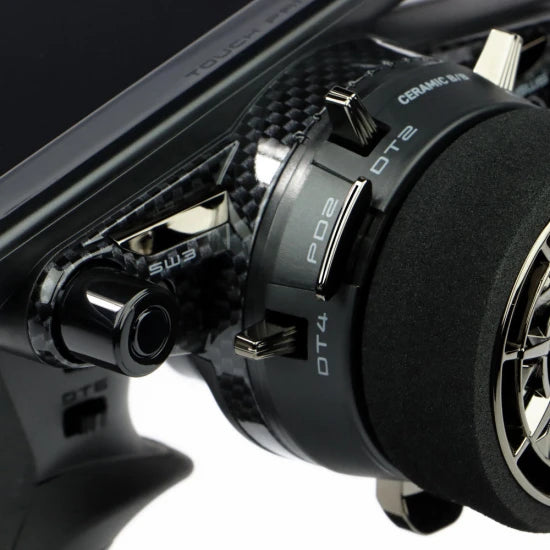

Ergonomics are equally refined: precision ceramic bearings on wheel and trigger, adjustable steering angles, wheel and trigger positions, selectable grip sizes and swift conversion to left-handed operation. Voice feedback, vibration alerts, USB connectivity and microSD support enhance usability, and the new steering trim memory lets you store and toggle trim settings to counter tyre wear over long runs.
Key Features
10 channels with F-4G system and full telemetry (temperature, RPM, volts, amps, GPS).
Supports F-4G, FHSS, T-FHSS, T-FHSS SR and Mini-Z protocols (Mini-Z with suggested compatibility for Kyosho Mini-Z models).

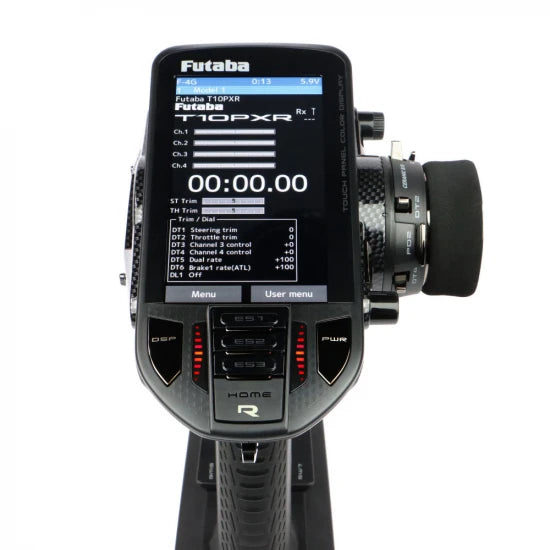

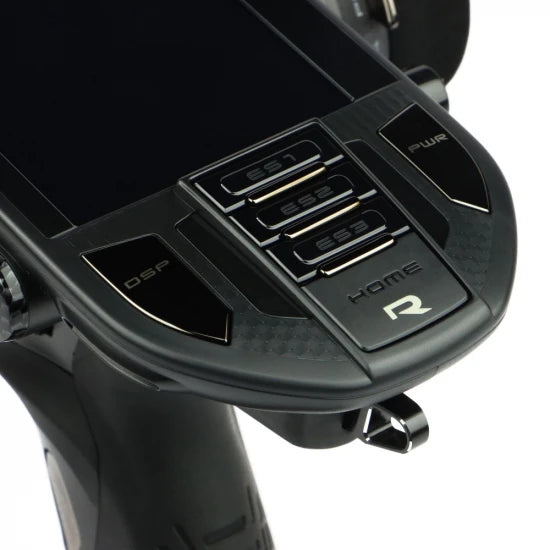

4.3 inch HVGA transflective colour touchscreen for indoor/outdoor visibility.
40 model memories with names up to 15 characters; software/data via microSD.
Response adjustment with 15-point steering and throttle scaling.
Mixing: steering (twin servo), brake (independent F/R), 4WS, dual ESC (front/rear), gyro, tank/track, CPS lighting, winch and tilt.
Programming tools: exponential, throttle/steering speed, servo response, traction control, A.B.S., engine cut, idle-up.
Condition programming, five program mixes, timers (x4), lap list and acceleration preset.
S.Bus servo parameter setting, MC Link for ESC setup and Gyro Link (wireless parameters).
Trim/dial lock, warning alarms and extensive vibration alerts.
Ergonomic adjustments: wheel offset/angle, trigger position and alternative narrow grip.
USB (games controller) port; supports left-handed operation.
What’s in the Box
T10PXR 10-channel transmitter

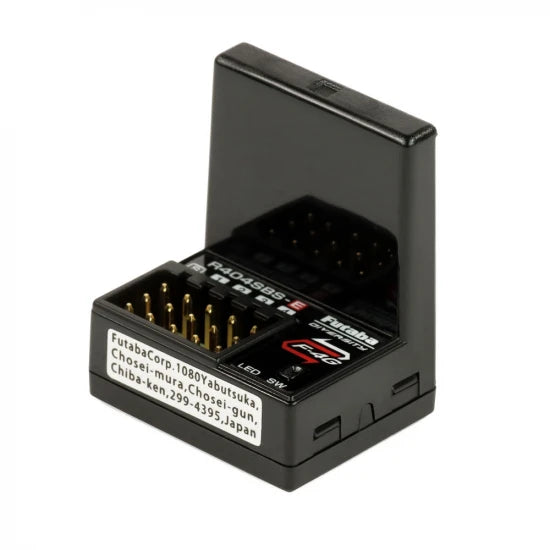

R404SBS-E receiver
Dry battery holder (4x AA)
LiPo battery spacer
Wheel offset adapter & screws
Wheel adapter (32 degree)
Wheel angle spacer (5 degree)
Large diameter steering wheel
Trigger guard
Brake lever L
Twin finger brake lever
Rubber grip
Blind paddle set
Hex wrench
UR/SR label sheet
Short manual
Needed to Complete
4x AA alkaline batteries
Specifications
Channels: 10
Radio protocols: F-4G, T-FHSS SR, T-FHSS, FHSS, Mini-Z
Screen: 4.3 inch HVGA transflective colour touchscreen
Colour: Black
