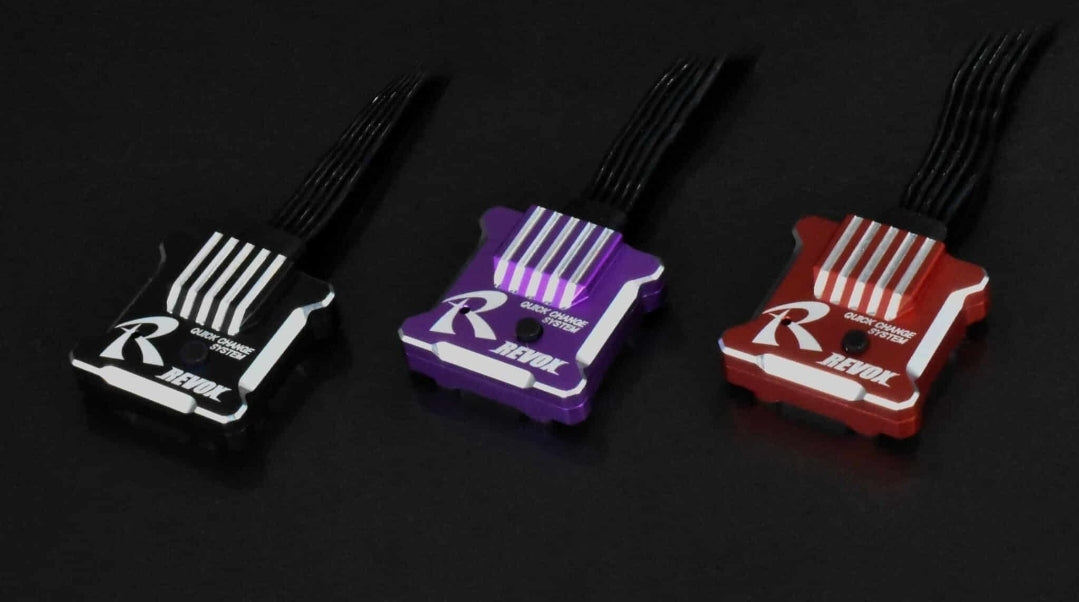

ReveD / RG-RVXA / REVOX Steering Gyro for RWD Drift Various Colours
Rêve D’s first RWD drift servo gyro “REVOX” is finally ready for release!

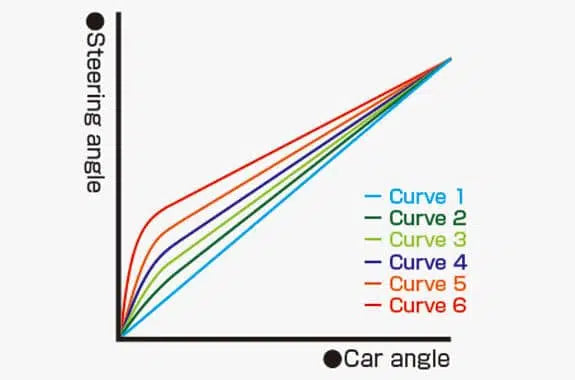

It Features a new function “Gyro curve setting” after repeated tests in various situations with many different drift specific servos over a long period of time, it can change the initial curve value in 6 stages according to skill, track surface conditions, track layout and so on.
The optimum setting is easily made by clicking the setup switch.
You can enjoy RC Drifting in several stages!

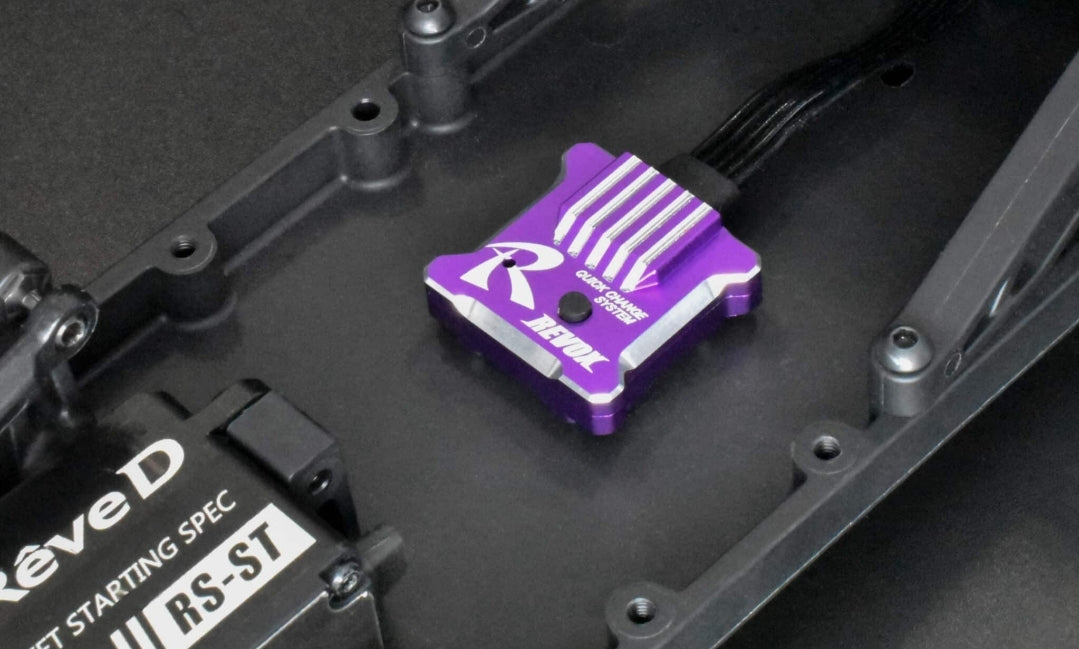

The stylish aluminum case, which greatly simplifies the switches, has a lightweight and compact design and can be installed in a small space.
A pair of setup switches and LEDs can be used to set all of the “gyro curve functions “endpoint function” and “reverse switching”.
Please experience the state-of-the-art gyro “REVOX” that has both the ultimate in manoeuvrability and flexibility.
Satisfying beginners and advanced users with ease of setup control!
Product dimensions:
W: 21.5 mm
D: 23.5 mm
H: 9.5 mm
Product features:
Gyro curve functions：6 stages
Endpoint function
Reverse switching
Gain adjustment：width 0 to 100
Setting items:
This product can be used exclusively for radio sets that have３ch or more
Set the EPA for transmitter １ch（steering）to ５５ or higher.
Set the EPA for transmitter ３ch to 100.
(Although the instruction manual attached to our RS-ST servo states that 3ch EPA is recommended for 110 to 120, set EPA to 100 when using REVOX )
The basic recommended gain is 70, and adjust it to your liking.
