HPI Stage-D10 Ford Mustang GT RTR S650 HPI-161004 brushed

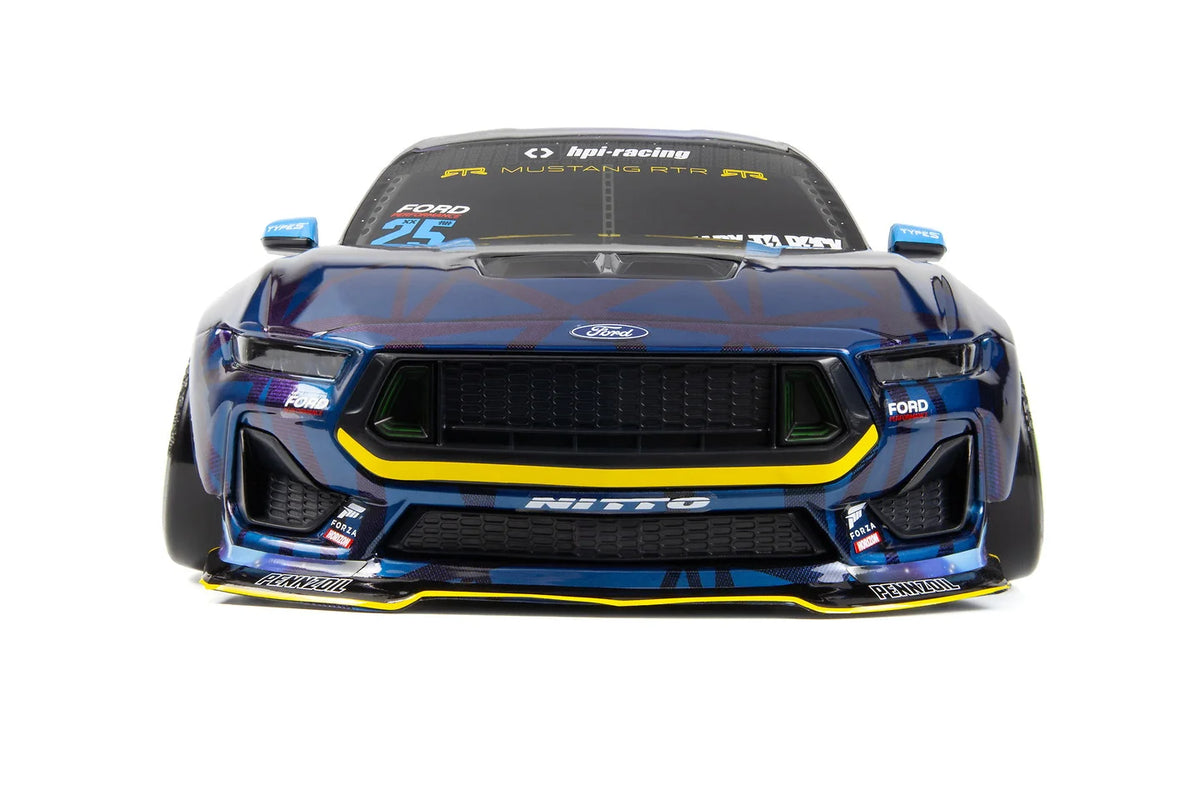

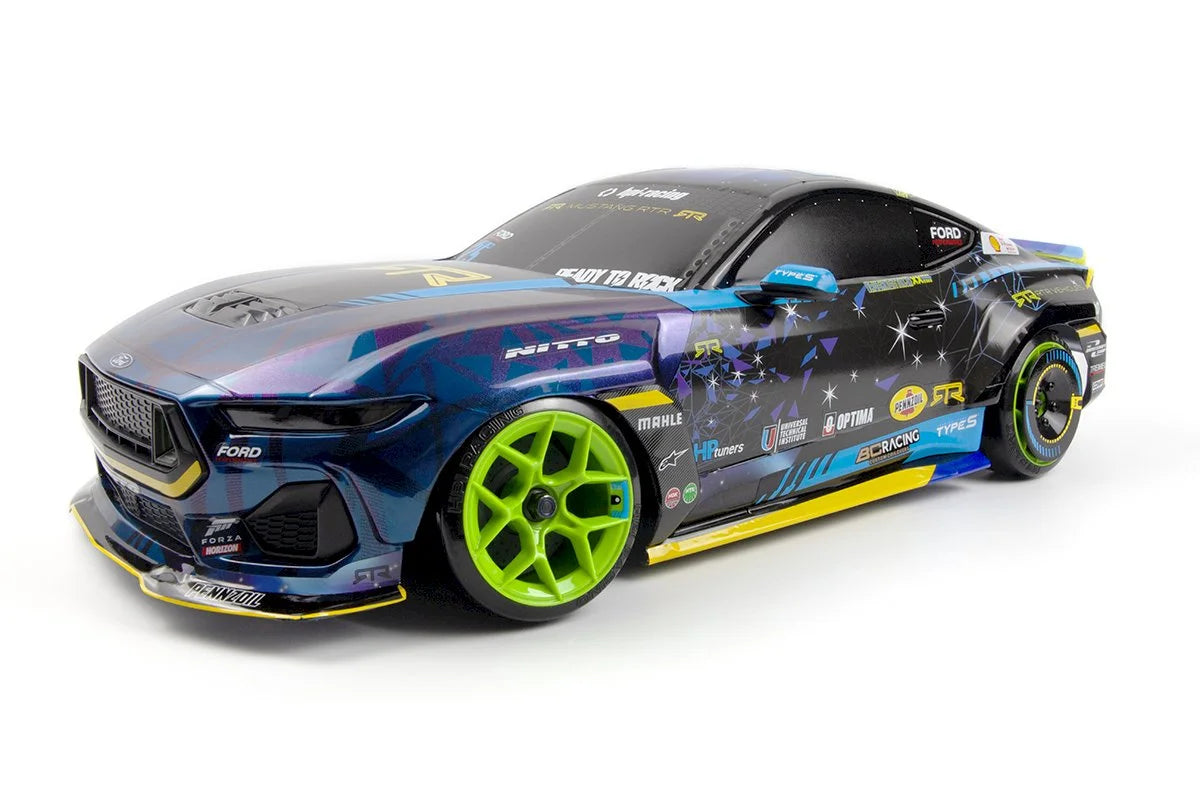

The HPI Stage-D10 Ford Mustang GT RTR S650 - , part number HPI-161004, is a 1/10 scale pre-assembled rear-wheel-drive drift car with a painted and officially licensed Ford Mustang RTR Spec-5 FD body. Designed for both newcomers and experienced RC drifters, this Ready-to-Run package combines manageable brushed power with a chassis offering extensive setup potential. The James Deane Formula Drift livery, replica Aero-5 wheels, removable rear aerodiscs and scale body details create an authentic appearance, while the integrated LED system adds headlights, grille lights, tail lights and brake lights for a distinctive look on the track.
Power comes from a 20T brushed 540 motor and SC-3SWP2 60A ESC, delivering smooth, controllable performance for learning throttle control, transitions and drift lines. The D-Box3 Lite drift gyro provides steering assistance, with gain adjustment available from the fourth channel of the TF-51 transmitter. The RF-51 receiver includes a waterproof silicone inner jacket, built-in failsafe and a dedicated LED connection.
Features

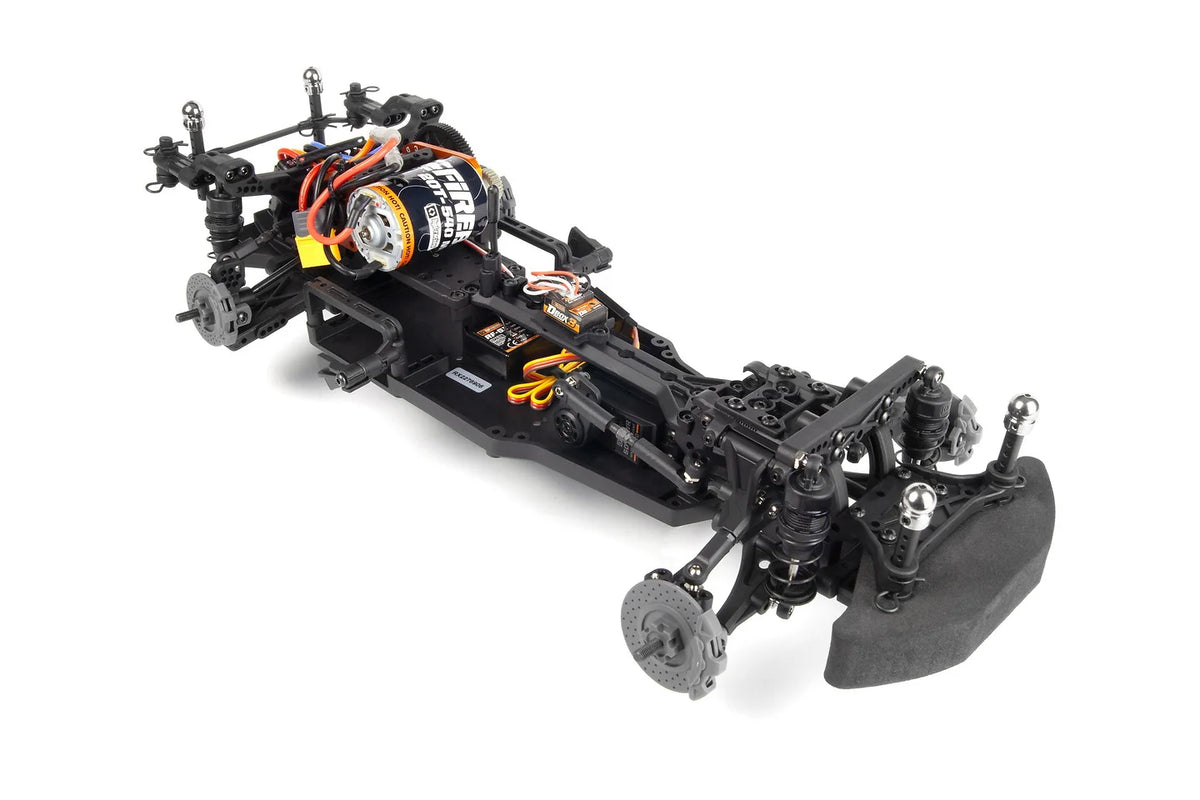

Underneath the detailed Mustang shell is a purpose-built 2WD RWD drift platform with oil-filled threaded coilover shocks and adjustable suspension geometry. Camber links, toe blocks, roll centre and camber gain positions allow the handling to be refined as driving experience develops. Ackermann geometry can be adjusted in several directions, while wheel hex spacing can be changed by 1mm or 2mm to tune the track width.
The chassis supports mid or rear shorty battery placement and offers more than 100 motor positions. The gearbox can be configured with three or four gears, giving more than 200 possible motor and transmission arrangements when combined. A sealed composite geared rear differential, metal-shielded ball bearings and an adjustable ESC mounting plate complete a platform built for progression. The magnetic body mounting system avoids body posts showing through the shell, while conventional mounting options are also included for suggested compatibility with other 1/10 scale shells.
Officially licensed James Deane Ford Mustang RTR Spec-5 FD body
Full LED lighting controlled from the transmitter
Adjustable D-Box3 Lite drift gyro
Adjustable wheelbase from 246mm to 264mm
2.6 internal final drive ratio
Front 3mm and rear 6mm wheel offsets
What's Included
Pre-assembled Stage-D10 drift car
Painted Ford Mustang RTR Spec-5 FD body
TF-51 4-channel 2.4GHz transmitter
RF-51 receiver with LED adaptor
20T brushed 540 motor
SC-3SWP2 60A ESC
SD-07WR steering servo
D-Box3 Lite drift gyro
Required to Complete
A 2S LiPo battery with an XT-60 plug, a compatible XT-60 LiPo charger and four AA transmitter batteries are required before running. Battery and charger are not included.
2S LiPo battery with XT-60 plug
XT-60 LiPo battery charger
Four AA batteries for the transmitter
The assembled car measures 460mm long, 200mm wide and 120mm high, with a 255mm wheelbase in its standard configuration. Its adjustable layout gives this Mustang a practical route from first drift sessions to more advanced chassis tuning.
