Reve D HT Rear Lower Suspension Arm 45mm (0D) RD-021-0
Reve D HT Rear Lower Suspension Arm 45mm (0D) RD-021-0

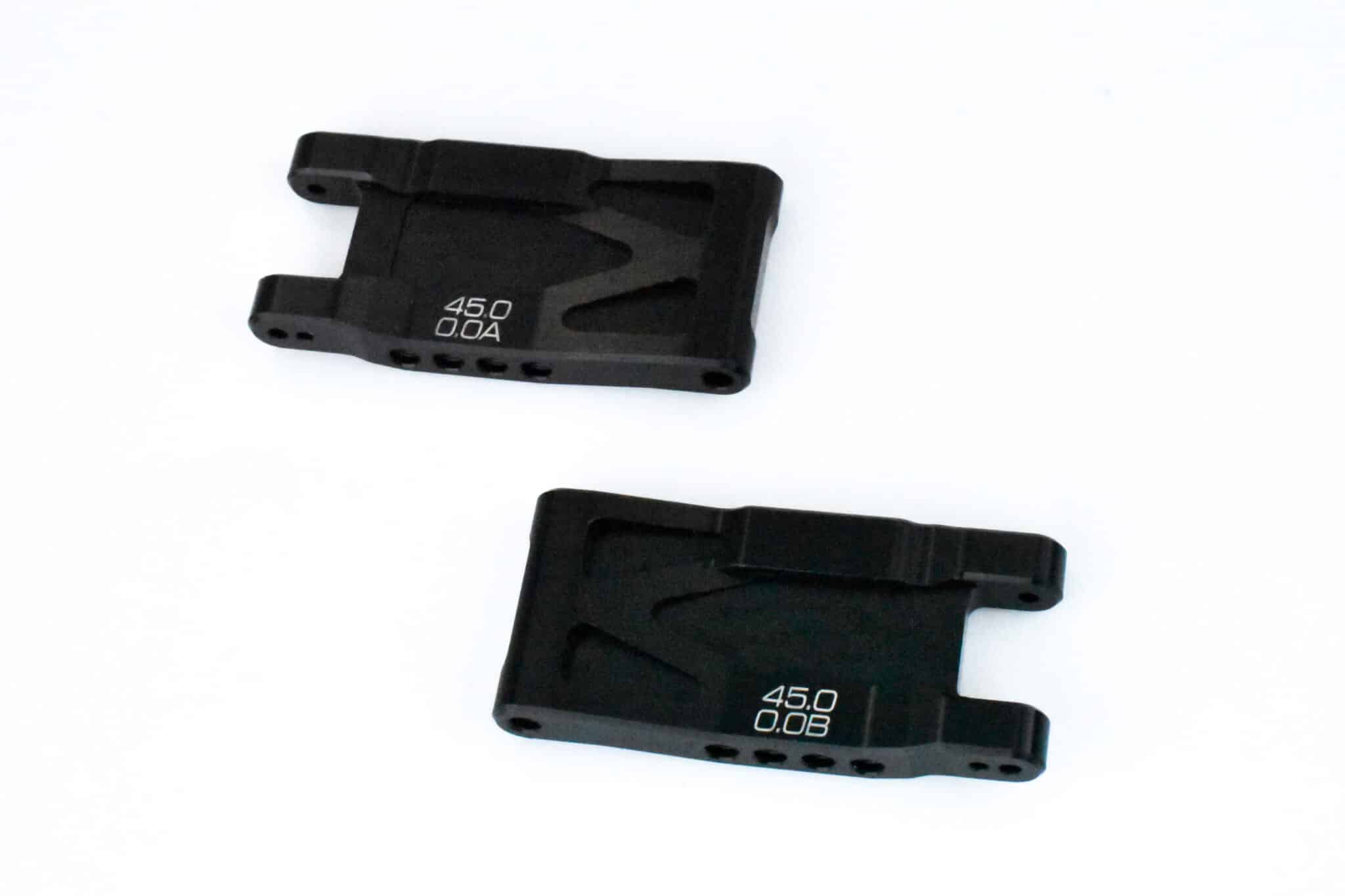

The HT (High Traction) rear lower arm was completed by the Reve D development team after conducting tests with various materials, shapes, and dimensions in order to achieve the best rear traction!
The HT rear lower arm, which is machined from lightweight and highly rigid DURACON (POM) material, has a high-precision finish and dramatically smooth suspension movement.

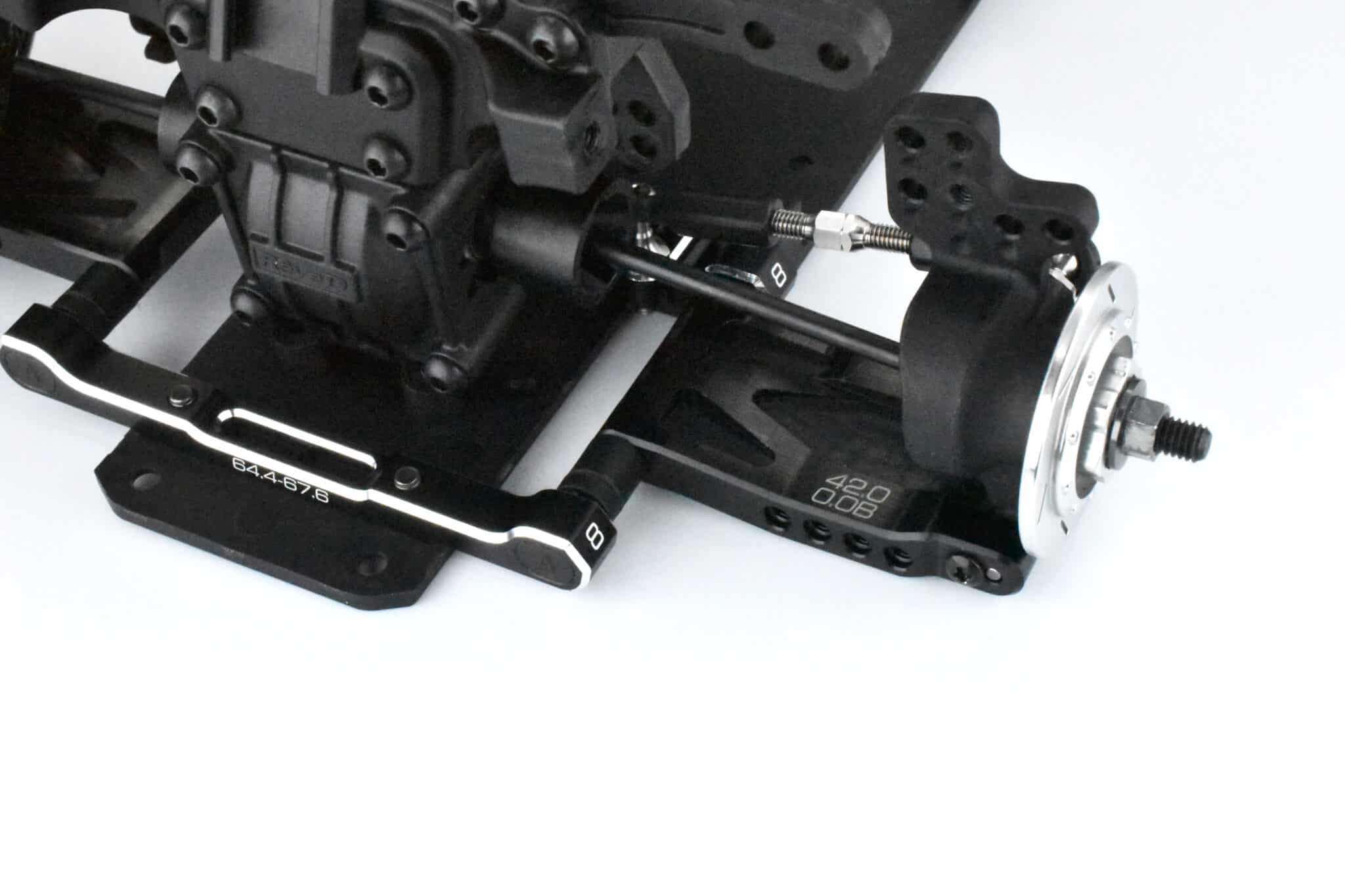

There are two lengths: 42mm and 45mm. In addition to the 0-degree caster angle for the 42mm, we have also added a caster angle of 2.6 degrees with an inclination to the outer pin side. 42mm and 45mm with caster angle of 0 degrees adopt a reversible structure, and you can choose the mounting height of the damper from 2 types by switching the left and right. By tilting the knuckle forward without adding a skid angle, the 42mm caster angle of 2.6 degrees makes it possible to increase traction without hindering the sinking of the suspension. *Long type suspension mount No.8 & No.9 or type TK No.8 or No.9 is recommended for 42mm.
Please try the HT rear lower arm, which provides the best traction performance!
Compatible models
Can be used on models with an inner suspension pin of 3mm and an outer suspension pin of 2mm, this includes our Reve D RDX.
