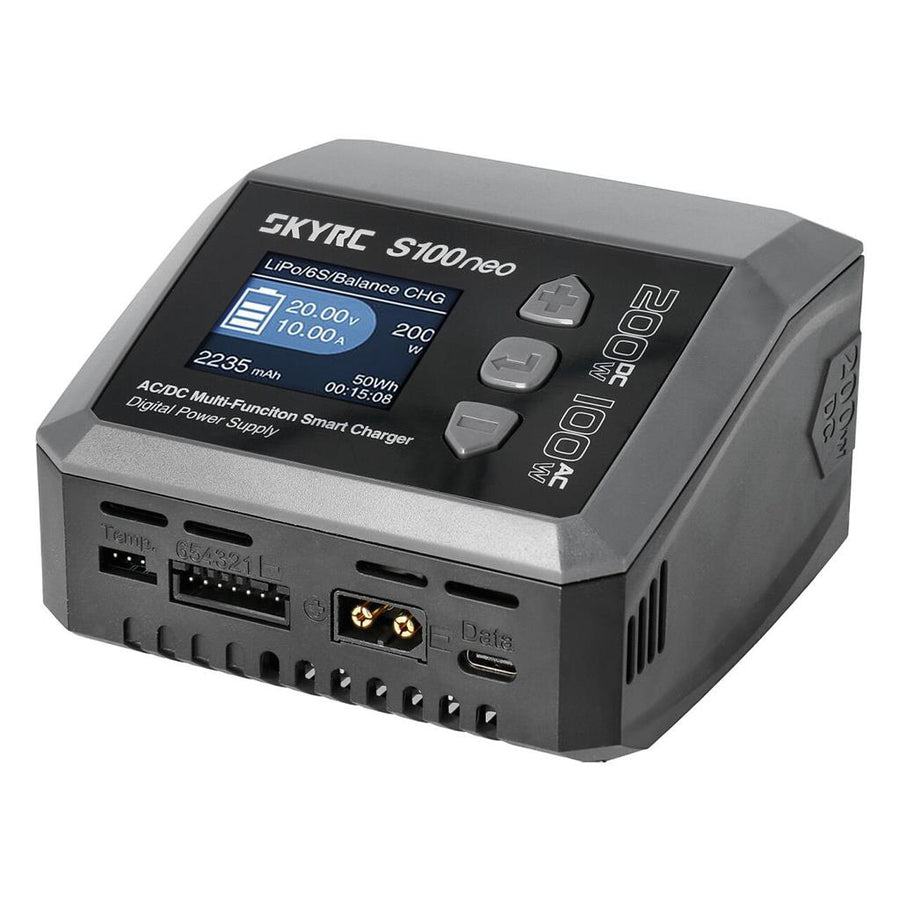

With dual power input, S100neo effortlessly provides up to 100W from an AC source and excels with a potent 200W output on a de facto standard XT60 DC plug for RC hobbyists.
This versatility ensures that S100neo meets a wide range of charging demands, whether at your pit table or in the field.
Size and Weight
Case Material: Plastic
Case Size: 105*105*62mm
Weight: 340g
Display
Display Type: TN
Size: 1.77 inch
Panel Active Area: 28.03*35.04mm
Resolution: 128x160 Pixel
Number of Colors: 262K
Power

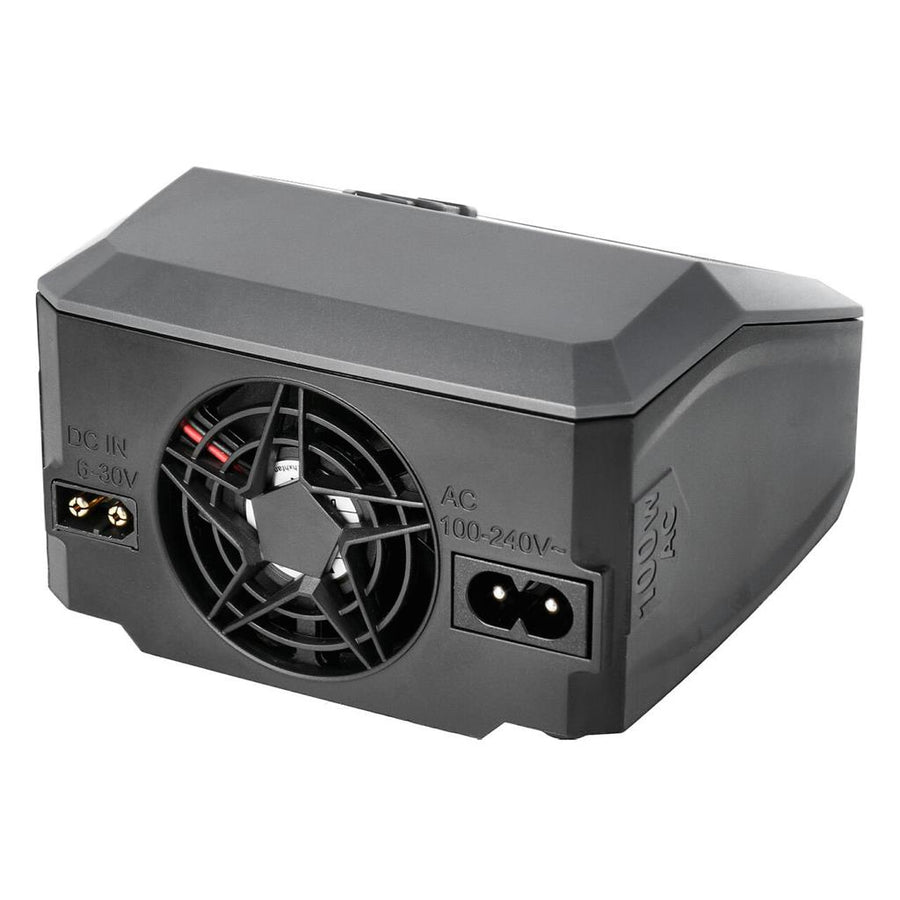

DC Input Voltage: 10-30V
AC Input Voltage : 100-240V
Charger power:
DC Input Voltage: 6-30V
AC Input Voltage: 100-240V 50/60Hz
Discharge power:
Max. 20W based on 6S(4.2V/S)
Battery
LiPo/LiHV/LiFe/LiIon: 1-6cells
NiMH/NiCd: 1-15cells
Pb: 3S/6S/12S
Charge and Discharge
Charge current
LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.1-12.0A
Discharge current
LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.1-2.0A
Balance current
LiPo/LiFe/LiIon/LiHV：Max. 1000mA
Operation
LiPo/LiFe/LiIon/LiHV: Balance charging, Charging, Discharging, Storage
NiMH/NiCd: Charge, Discharge, Cycle charge-discharge, Cycle discharge-charge, Repeat charge
Pb: Normal, Standard charge, Low-temperature charge, AGM charge/discharge
YOU WILL NEED AN XT60 CHARGE LEAD (SOLD SEPARATELY)
