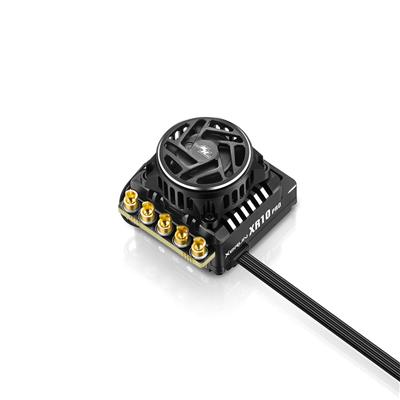

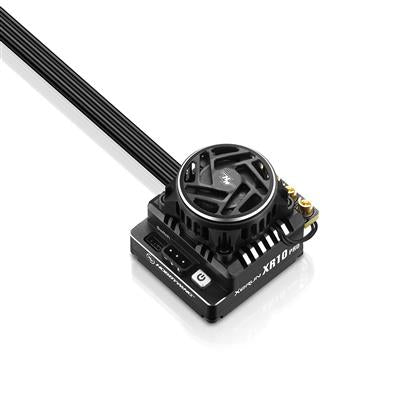

XERUN XR10 Pro Black G3 Item No. HW30112619
enhances the driving force in the initial phase, significantly improving the drivability of high power vehicles without losing overall speed.
Low center of gravity design

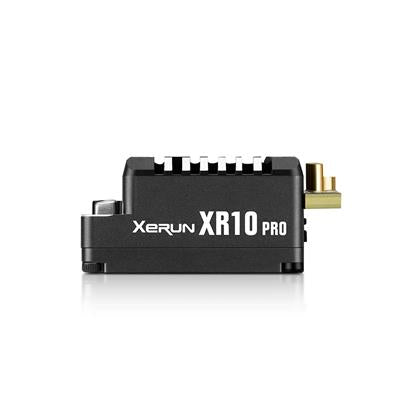

The ESC fan assembly features a improved lower center of gravity design compared to the previous XR10 Pro G2S ESC. The overall height of the ESC is reduced by 2mm, effectively lowering the center of gravity and aiding in the car balance.

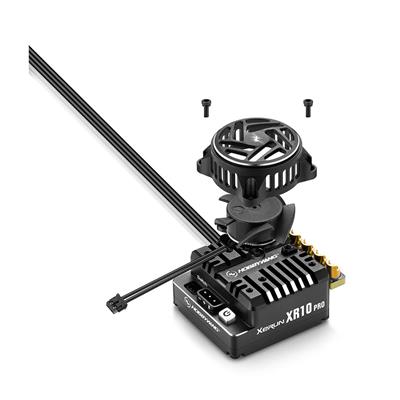

The fan assembly is also detachable to further reduce the ESC’s center of gravity when an ESC cooling fan is not required.
Optimized cable output for easier wiring

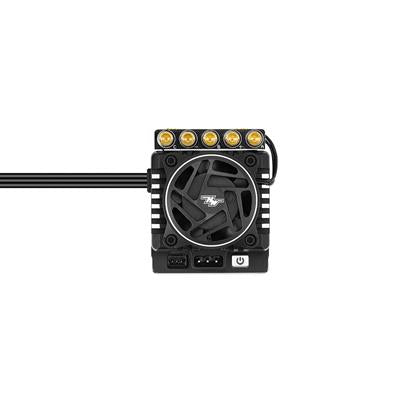

The ESC layout has been optimized for simplicity in wiring for on-road applications while also accommodating off-road vehicle layouts. Plus, the ESC also includes one set U-type connectors, which can easily meet various wiring requirements, such as flat and diagonal soldering.
Built-in reverse polarity protection circuit
The standard version of the G3 ESC includes a built-in reverse connection protection circuit, effectively preventing damage to the ESC caused by accidental reverse connections.
Note:
Only the non-polarity capacitor option is able to provide reverse polarity protection for the entire power system. The standard capacitor in the ESC does not offer reverse connection protection. While reverse connection of the battery will damage the capacitor, the ESC itself will remain undamaged.
The G3X version of the XR10 Pro, does NOT offer any internal Reverse Voltage Protection and will be damaged if connected incorrectly.
Dual version options
The ESC offers two options:the standard G3 (black) and the G3X (titanium gray).
Note： The G3 version comes standard with 13AWG wire, while the G3X version comes standard with 12AWG wire,and does not have Reverse Voltage Protection.
Built-in BEC supports high-voltage servos
An adjustable BEC is integrated in the ESC to provide an output current with a peak of 10A. The output voltage has continuous adjustability ranging from 5.0V to 7.4V,settable at 0.1V per step in this range.
All this meets the power requirements without any issues for both high-torque and high-voltage servos.
Specification
Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Waterproof - No
Cont./Peak Current - 160A/1200A
Input Voltage - 2S LiPo
BEC Output - Switch Mode 5V-7.4v 6A
Input Wires - Black-13AWG-200mm*2
Output Wires - Black-13AWG-200mm*3
Input Connectors - No
Output Connectors - No
Fan
Type - Frameless Fan
Data Recording
Extreme Value - Supported
Real-Time Data - Supported
Historical Data (Graph) - Supported
ESC Programing via
SET Button on ESC - Not Supported
LED Program Box - Not Supported
LCD G2 Program Box - Supported
LCD Pro - Supported
OTA Programmer - Supported
Program Port - Separate
Firmware
Firmware Upgrade - Supported
Size - 35X33.6X30.3mm
Weight - 93g (Included wires&connectors)
